| Place of Origin: | China |
| Brand Name: | Skypro |
| Certification: | ROHS/Reach/SGS |
| Model Number: | SP22-34 |
| Minimum Order Quantity: | 200.sqm |
|---|---|
| Price: | negotiable |
| Packaging Details: | olls,inner foam+ outer abrasion resistant canvas with hard cardboard tube inside |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 sq.m/day |
| Keyword: | Food Grade PVC Conveyor Belt | Raw Material: | Rubber, Fiber Etc |
|---|---|---|---|
| Protection: | Water Proof | Layer Strength Type: | 2-6 Layers |
| Application: | Stone Crushing Conveyor, Stone Washing | ||
| Highlight: | PVC conveyor belting,PVC PU conveyor belt |
||

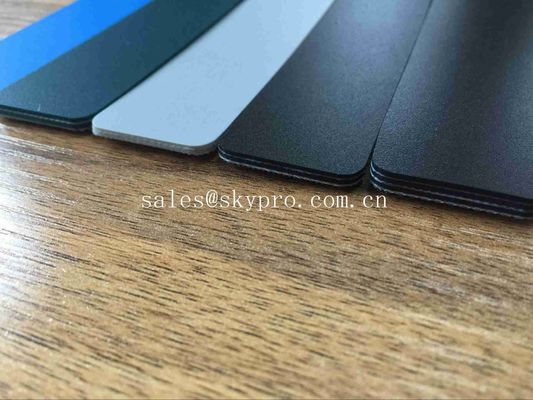

Blue Black White Colorful Matt Large Output PVC Surface with Fabric Abrasion-resistant Rubber Mat Belt Conveyor Belt
Specification:
Light duty conveyor belts are manufactured for all applications with various fabrics impregnation like polyester, nylon, cotton, solid woven, fiberglass etc. Belts are available in different colors like green, white, black, blue and thickness from 0.5 mm to 15 mm up to 2000 mm width and with top surface coating Rubber, PVC, PU, TPU, PE, TPEE, PTFE, Silicone, etc.
The main products include flat surface series, anti-slid series which diversified in a lot of textures for meeting different conveying conditions and environment, featuring anti-static, anti-corrosion, flame retardant etc.
There are wide range of patterns of rough top belt available including Diamond, Chevron, Herringbone, Rib, Grid, Wave, Round and Oval nubs, Convex-tooth etc.
Features:
Anti-static and non-conductive
Food quality types to FDA standards
Resistance to abrasion, oils, fats and chemicals
Surfaces with low, medium or high coefficient of friction
High transverse rigidity and dimensional stability
Low noise
Working temperature ranges from -10 to 260Deg.C
PVC PE PU:
This light duty conveyor belt takes braided fabric made of polyester threads that has undergone special technical treatment as the carrier framework. One or both sides are coated with rubber, PVC, PU or PE. It features great strength, little elongation or extension, good bending and twisting ability, stable running, and long service life.
PU conveyor belt has the common traits of high tensile strength, good bending, lightness,thinness and toughness. It also has the outstanding traits of anti-germ,wear-resistance, oil-resistance, nonpoisonous and sanitary, and easy to clean.All of these conform to the management requirement of conveying non-packed food.
PE conveyor belt has the common traits of high tensile strength, good bending, and stable running. It is also nonpoisonous and sanitary, easy to clean, and has smooth surface. It can touch with food directly. It is the ideal matching equipment of deep-processing industry for tobacco, food, meat and fishery, fruit and vegetable.
Packing and transportation:
| Packing way | Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients |
| Packing material | Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary |
| Shipping marks | Neutral packing with printed marks. |
| Delivery time | 15 days since receipt of PO and down payment |
| Freight | Sea(FCL & LCL) or air freight |
| Special size | We provide cutting services for special sizes |
| Lamination | We provides extra lamination with PSA, textiles or other materials. |
FAQ(Frequently Asked Questions)
1. What is the capability of your company ?
Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.
2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.
3.How can I get some samples?
We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.
our rubber is free of heavy metal and other hazardous ingrediants with ROHS/SGS certifical
About Rubber
| rubber variety (ASTM ) |
IR | SBR | BR | CR | NBR | |
| chemical structure | Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber” | Styrene Butadiene Rubber | Polybutadiene Rubber | Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene | Butadiene Acrylnitrile Rubber,Nitrile Rubber | |
| main characteristics | high flexibility, good comprehensive physical mechanic performance | better wear-resistant and anti-aging function than NR, lower prices | same wear-resistant with NR and better flexible and lower temperature resistant than NR | good climate resistant, ozone proof, hot resistance and chemical resistant | good oil-resistant, wear-resistant and anti-aging | |
| quality of NR | proportion | 0.93 | 0.94 | 0.93 | 1.23 | 0.96~1.02 |
|
meni adhesive meni adhesive ML 1+4 100 ℃ |
45 ~150 | 30~ 7 0 | 35~55 | 45~120 | 30~100 | |
| rubber physical performance |
hardness range ( SHORE A ) |
2 0~100 | 4 0~100 | 30~100 | 45~120 | 30~130 |
| anti-tensity (MPa) | 7~27 | 7~24 | 7~20 | 7~27 | 7~27 | |
| elongation rate (%) | 100~ 700 | 100~ 700 | 100~ 700 | 100~ 600 | 100~700 | |
| re-elasticity | excellent + | good | excellent + | excellent | good | |
| tearing force | excellent | middle ~ good | good | good | good | |
| wear-resistant | excellent | excellent | excellent | excellent | excellent | |
| compress & distortion | good | good | middle | good | good | |
| temperature range(℃) | -75~90 | -60~100 | -100~100 | -50~120 | -50~120 | |
| climate resistant | middle | middle | middle | excellent | bad | |
| ozone proof | bad | middle | bad | good ~ excellent | middle | |
| electric performance | excellent | middle | good | good | bad ~ middle | |
| gas penetrating resistant | middle | middle | middle | good | excellent | |
| oil-resistant and acid& alkali resistant | oil-resistant | bad | bad | bad | good | excellent |
| fire-resistant | bad | bad | bad | middle | good | |
| alcohol | excellent | excellent | excellent | excellent | excellent | |
| MEK | good | good | good | good | middle | |
| water | excellent | good ~ excellent | bad | good | excellent | |
| high concentration inorganic acid | middle | bad | bad | middle | middle | |
| low concentration inorganic acid | good | good | good | excellent | good | |
| high concentration alkali | good | good | good | excellent | good | |
| low concentration alkali | good | good | good | excellent | good | |
| application | tyre, rubber shoes, rubber pipe, adhesive tape, air spring | tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape | car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe | wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics | oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller | |
| rubber variety (ASTM ) |
EPDM | IIR | CSM | SIR | FKM | |
| chemical structure | Ethylene Propylene Terpolymer Rubber | Isobutene-Isoprene (butyl) Rubber | Chlorosulfonated Polyethyelene | Silicone Rubber | Vinylidene Fluoride Hexaflyoropropylene Rubber,FKM | |
| main characteristics | good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber | good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant | better wear-resistant and anti-aging function than NR, lower prices. | good cold & hot resistant | best hot resistant and chemical resistant | |
| quality of NR | proportion | 0.85 | 0.91~0.93 | 1.10 | 0.98 | 1.4~1.96 |
| meni adhesive ML1+4 100 ℃ | 40~100 | 45~80 | 45~60 | liquid state | 35~160 | |
| rubber physical performance | hardness range ( SHORE A ) | 30~100 | 20~90 | 50~95 | 20~95 | 60~90 |
| anti-tensity (MPa) | 7~20 | 7~20 | 7~20 | 3~10 | 7~16 | |
| elongation rate (%) | 100~300 | 100~700 | 100~500 | 50~800 | 100~350 | |
| re-elasticity | good | middle | good | good | middle | |
| tearing force | bad | excellent | good | middle | middle | |
| wear-resistant | good | good | good | middle | good | |
| compress & distortion | middle | middle | good | excellent | excellent | |
| temperature range(℃) | -60~150 | -60~150 | -60~150 | -120~280 | -50~300 | |
| climate resistant | excellent | excellent | excellent | excellent | excellent | |
| ozone proof | excellent | excellent | excellent + | excellent | excellent + | |
| electric performance | excellent | excellent | good | excellent | good ~ excellent | |
| gas penetrating resistant | middle | excellent | less good | bad | excellent | |
| oil-resistant and acid& alkali resistant | oil-resistant | bad | middle | good | middle | excellent |
| fire-resistant | bad | bad | middle | bad | excellent | |
| alcohol | excellent | excellent | excellent | excellent | excellent | |
| MEK | good | excellent | less good | excellent | middle | |
| water | excellent | excellent | good ~ excellent | excellent | good ~ ecellent | |
| high concentration inorganic acid | good | excellent | excellent | good | excellent | |
| low concentration inorganic acid | excellent | excellent | excellent | excellent | excellent | |
| high concentration alkali | excellent | excellent | excellent | excellent | excellent | |
| low concentration alkali | excellent | excellent | excellent | excellent | excellent | |
| application | wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line | interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line | climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller | axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products |
axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory |
|
