Name: Diamond Pattern PVC Conveyor Belt for Treadmill Walking Belt - Heat-Resistant and Customized Thickness
Brand: Nanjing Skypro Rubber&Plastic Co.,ltd
SKU: SP25-15/1A
Price: 15,000.00 USD
Availability: InStock

Home Products PVC Conveyor Belt

Diamond Pattern PVC Conveyor Belt for Treadmill Walking Belt - Heat-Resistant and Customized Thickness

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	OEM
Model Number:	SP25-15/1A

Payment & Shipping Terms:

Minimum Order Quantity:	200

Contact Now

Detailed Product Description

Material:	PU/PVC	Temperature Range:	-10/+80 Degree
Total Thickness:	2.1 Mm	Pattern Thickness:	-
Cover Thickness:	0.6 Mm	Cover Hardness:	80/85 Shore-A
Weight:	2.0 Kg/m2	Effective Pull:	8 N/mm
Support Type:	Slide, Roller	Fabric Plies:	2
Top Material:	PVC	Bottom Material:	PVC Belt With Diamond Pattern
Pattern:	Diamond, Smooth, Lattice	Color Options:	Black, White, Green
Lateral Stability:	Yes
Highlight:	Diamond Pattern PVC Conveyor Belt , Heat-Resistant Treadmill Walking Belt , Customized Thickness Plastic Conveyor Belt

Black Diamond PVC Conveyor Belt for Treadmill Walking Belt

Premium PVC conveyor belt specifically designed for treadmill walking belts and industrial applications. Manufactured with high-quality PVC and polyester fabric for superior performance and durability.

Product Overview

Our PVC conveyor belts operate effectively in temperatures ranging from -15°C to +80°C and offer excellent lateral stability. These versatile belts are widely used across multiple industries including:

Airports and postal automation systems
Parcel handling and logistics
Treadmills and fitness equipment
Packaging and wrapping operations
Confectionery and food processing
Paper printing industry

Customization Options

We provide PVC conveyor belts with specialized functions to suit various environmental conditions:

Cold, heat, and abrasion resistance
Anti-slip and anti-static features
Multiple widths, patterns, and colors
Various plies, thicknesses, and profiles
Custom specifications available upon request

Technical Specifications

Type	SP25-15/1A
Pattern	Diamond, smooth, lattice
Color	Black, white, green
Top Material	PVC
Bottom Material	PVC belt with diamond pattern
Number of Fabric Plies	2
Total Thickness	2.1 mm
Cover Thickness	0.6 mm
Cover Hardness	80/85 shore-A
Weight	2.0 kg/m²
Effective Pull at 1% Elongation	8 N/mm
Temperature Range	-15°C to +80°C
Type of Support	Slide, Roller
Characteristic	Lateral stability
Property	Non-adhesive surface
Application	General; Logistics and food industry

Packing & Transportation

Packing Method	Packed in roll or flat sheet, 50-100kg/roll or according to specific client requests
Packing Material	Inner PE film + outer woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping Marks	Neutral packing with printed marks
Delivery Time	15 days since receipt of PO and down payment
Freight Options	Sea (FCL & LCL) or air freight
Special Sizes	We provide cutting services for special sizes
Lamination	Extra lamination with PSA, textiles or other materials available

Frequently Asked Questions

What is the capability of your company?

Skypro is a professional manufacturer of rubber sheet products with over two decades of experience. We rank among the top 10 largest rubber factories in China.

What is your annual production capability?

We produce more than 18,000 tons of rubber sheet products each year.

How can I get samples?

We are pleased to offer free samples. New clients are expected to pay for delivery costs, which will be deducted from the payment for formal orders.

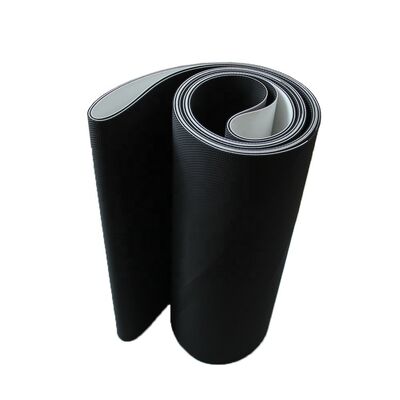

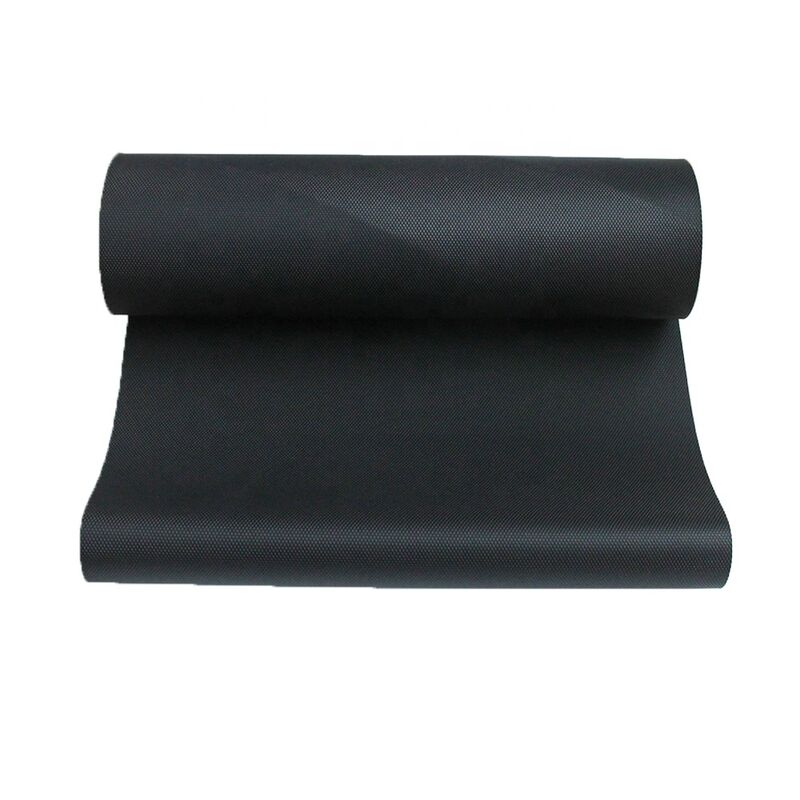

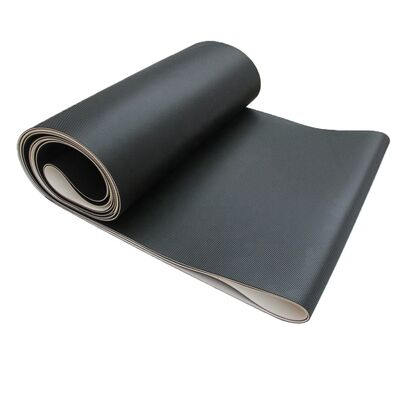

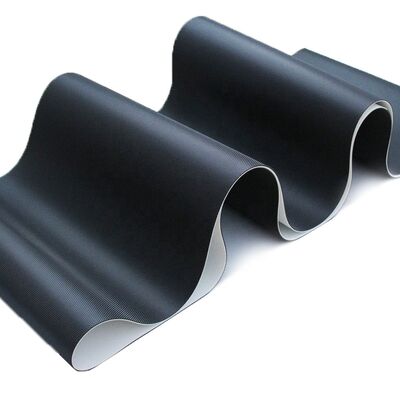

Product Images
