Name: Oil-Resistant Heat-Resistant PVC Conveyor Belt with Customized Thickness for Treadmill Running Belt
Brand: Nanjing Skypro Rubber&Plastic Co.,ltd
SKU: SP25-15/1A
Price: 15,000.00 USD
Availability: InStock

Home Products PVC Conveyor Belt

Oil-Resistant Heat-Resistant PVC Conveyor Belt with Customized Thickness for Treadmill Running Belt

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	OEM
Model Number:	SP25-15/1A

Payment & Shipping Terms:

Minimum Order Quantity:	200

Contact Now

Detailed Product Description

Material:	PU/PVC	Temperature Range:	-10/+80 Degree
Total Thickness:	Customised	Pattern:	Smooth Diamond Lattice Etc
Number Of Plies:	2	Cover Thickness:	0.6 Mm
Cover Hardness:	80/85 Shore-A	Weight:	2.0 Kg/m2
Effective Pull:	8 N/mm	Support Type:	Slide, Roller
Lateral Stability:	Yes	Surface Property:	Non Adhesive
Top Material:	PVC	Bottom Material:	PVC Belt With Diamond Pattern
Pattern Thickness:	-
Highlight:	Oil-Resistant PVC Conveyor Belt , Heat-Resistant Running Conveyor Belt , Customized Thickness Treadmill Running Belt

Treadmill Conveyor Belt and Running Conveyor Belt

High-quality PVC conveyor belts designed for durability and performance across various industrial applications.

Product Overview

Our PVC conveyor belts are manufactured from PVC (Polyvinyl Chloride) and polyester fabric, featuring a working temperature range of -10°C to +80°C. These belts offer excellent lateral stability and are widely used in:

Airports and postal automation systems
Parcel handling and logistics
Treadmills and fitness equipment
Packaging and wrapping operations
Confectionery and food processing industries
Paper printing and manufacturing

Custom Features & Specifications

We provide PVC conveyor belts with specialized functions to suit various environmental conditions, including:

Cold and heat resistance
Abrasion resistance
Anti-slip surfaces
Anti-static properties

Available in various widths, patterns, colors, plies, thicknesses, and profiles according to customer requirements.

Specification	Details
Type	SP25-15/1A
Pattern	Diamond, smooth, lattice
Color	Black, white, green
Top Material	PVC
Bottom Material	PVC belt with diamond pattern
Number of Fabric Plies	2
Total Thickness	2.1 mm
Cover Thickness	0.6 mm
Cover Hardness	80/85 shore-A
Weight	2.0 kg/m²
Effective Pull at 1% Elongation	8 N/mm
Temperature Range	-15°C to +80°C
Type of Support	Slide, Roller
Characteristic	Lateral stability
Property	Non-adhesive surface
Application	General; Logistics and food industry

Packing & Transportation

Category	Details
Packing Method	Packed in roll or flat sheet, 50-100kg/roll or according to specific client requests
Packing Material	Inner PE film + outer woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping Marks	Neutral packing with printed marks
Delivery Time	15 days since receipt of PO and down payment
Freight Options	Sea (FCL & LCL) or air freight
Special Sizes	We provide cutting services for special sizes
Lamination	We provide extra lamination with PSA, textiles or other materials

Frequently Asked Questions

What is the capability of your company?

Skypro is a professional manufacturer of rubber sheet products with over two decades of experience. We rank among the top 10 largest rubber factories in China.

What is your annual production capability?

We produce more than 18,000 tons of rubber sheet products each year.

How can I get samples?

We are pleased to offer free samples. New clients are expected to pay for delivery costs, which will be deducted from the payment for formal orders.

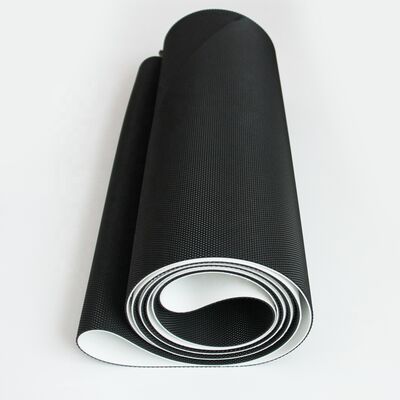

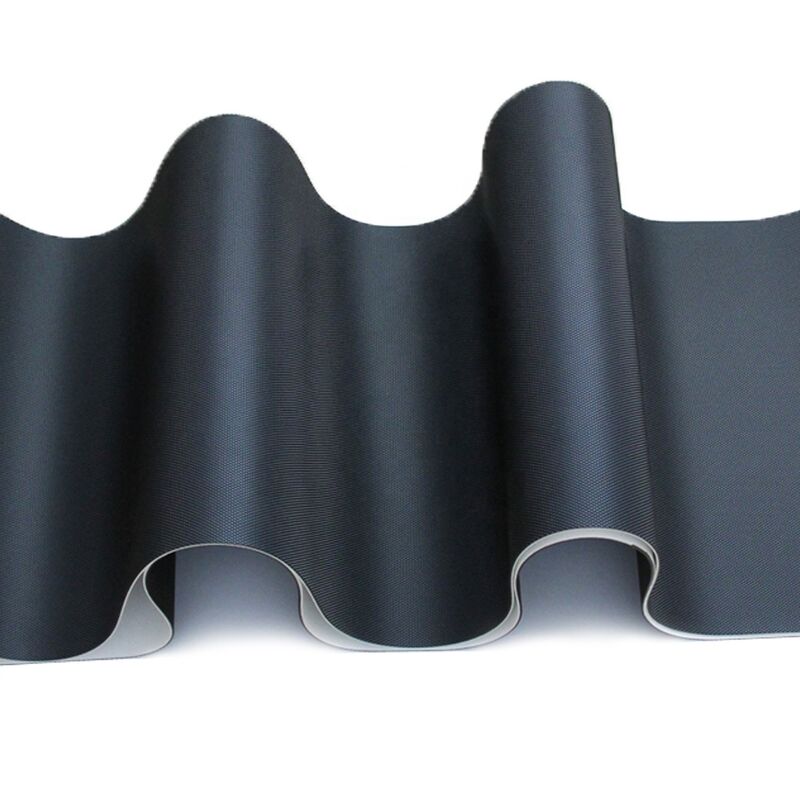

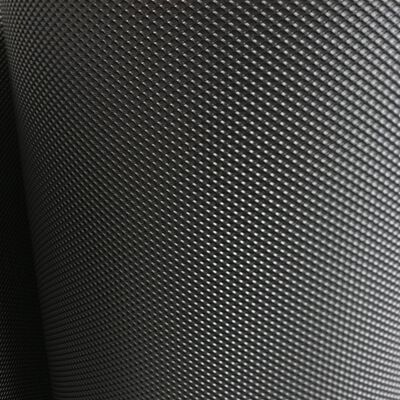

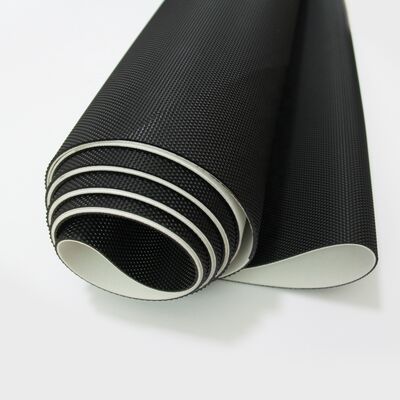

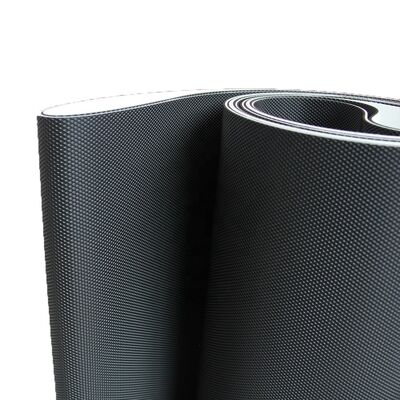

Product Images
