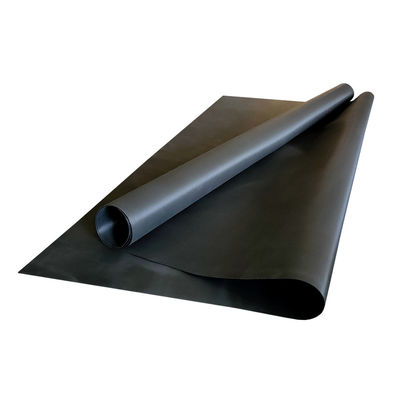

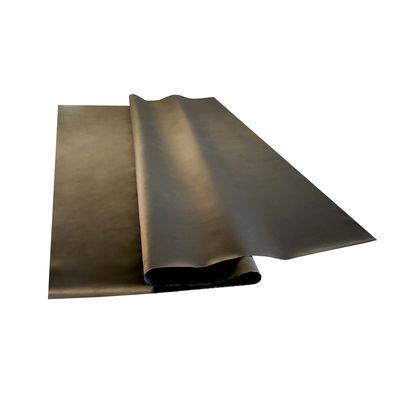

Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated

Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated

  • Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated
  • Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated
  • Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated
Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated
Product Details:
Place of Origin: China
Brand Name: Skypro
Certification: SGS/ROHS
Model Number: SK1008
Payment & Shipping Terms:
Minimum Order Quantity: 500 yards
Price: negotiable
Packaging Details: in rolls or flat sheets , inner PE film +outer woven plastic bags
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 yads/day
Contact Now
Detailed Product Description
Main Color: Tan,white,red Black,khaki Etc. Elongation: 350%
Working Temperature: -40/120°C Tensile Strength: 8Mpa
Specific Gravity: 1.20-1.60g/cm3 Hardness: 50-80Shore A
Tear Strength: 12--30 N/mm
High Light:

Hypalon Marine Polyester Fabrics

,

Embossed Air tightness Marine Polyester Fabrics

,

Rubber Dinghy Neoprene Fabric Roll

Embossed Air tightness Hypalon Fabric For Marine Fabrics/ Cold Resistant Rubber Coated Polyester Fabric For Rubber Dingh



Specification:

NO. SK1008
Tensile strength 8Mpa
Hardness 50—80Shore A
Elongation 350%
Specific Gravity 1.20—1.60g/cm3
Tear strength 12--30 N/mm
Working temperature -40/120°C
thickness From 1 to 5mm
Width 1.5m
Executable standard BS2752 - C40
Surface Finished Smooth or cloth impression



Characteristics:

1) Hypalon has very low permeability to air and other gases.

2) Hypalon has moderate resistance to abrasion and compression set.

3) With careful compounding hypalonl has really good tensile strength.

4) Resistance to chemicals; resistant to most inorganic products.



Description:

Good climate resistant,ozone proof,hot resistance and chemical resistant.

Bonsun Rubber offers a wide range of rubber sheets in materials of

Natural rubber / SBR, Neoprene, NBR, EPDM,Butyl, Sillicon, Viton etc



Performance:excellent resistance to aging and weather performance,good corrosion resisting and flame resistance,It can be produced colorful products and not easy to fade away.



Use:mainly used in producing colorful sunshade,yacht bus and rail transit skirt cloth.



Packing and transportation:

Packing way Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
Packing material Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping marks Neutral packing with printed marks.
Delivery time 15 days since receipt of PO and down payment
Freight Sea(FCL & LCL) or air freight
Special size We provide cutting services for special sizes
Lamination We provides extra lamination with PSA, textiles or other materials.



FAQ(Frequently Asked Questions)
1. What is the capability of your company ?
Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.

2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.

3.How can I get some samples?
We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.





About Rubber

rubber variety
(ASTM )
IR SBR BR CR NBR
chemical structure Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber” Styrene Butadiene Rubber Polybutadiene Rubber Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene Butadiene Acrylnitrile Rubber,Nitrile Rubber
main characteristics high flexibility, good comprehensive physical mechanic performance better wear-resistant and anti-aging function than NR, lower prices same wear-resistant with NR and better flexible and lower temperature resistant than NR good climate resistant, ozone proof, hot resistance and chemical resistant good oil-resistant, wear-resistant and anti-aging
quality of NR proportion 0.93 0.94 0.93 1.23 0.96~1.02

meni adhesive

meni adhesive

ML 1+4 100 ℃

45 ~150 30~ 7 0 35~55 45~120 30~100
rubber physical performance

hardness range

( SHORE A )

2 0~100 4 0~100 30~100 45~120 30~130
anti-tensity (MPa) 7~27 7~24 7~20 7~27 7~27
elongation rate (%) 100~ 700 100~ 700 100~ 700 100~ 600 100~700
re-elasticity excellent + good excellent + excellent good
tearing force excellent middle ~ good good good good
wear-resistant excellent excellent excellent excellent excellent
compress & distortion good good middle good good
temperature range(℃) -75~90 -60~100 -100~100 -50~120 -50~120
climate resistant middle middle middle excellent bad
ozone proof bad middle bad good ~ excellent middle
electric performance excellent middle good good bad ~ middle
gas penetrating resistant middle middle middle good excellent
oil-resistant and acid& alkali resistant oil-resistant bad bad bad good excellent
fire-resistant bad bad bad middle good
alcohol excellent excellent excellent excellent excellent
MEK good good good good middle
water excellent good ~ excellent bad good excellent
high concentration inorganic acid middle bad bad middle middle
low concentration inorganic acid good good good excellent good
high concentration alkali good good good excellent good
low concentration alkali good good good excellent good
application tyre, rubber shoes, rubber pipe, adhesive tape, air spring tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller
rubber variety
(ASTM )
EPDM IIR CSM SIR FKM
chemical structure Ethylene Propylene Terpolymer Rubber Isobutene-Isoprene (butyl) Rubber Chlorosulfonated Polyethyelene Silicone Rubber Vinylidene Fluoride Hexaflyoropropylene Rubber,Viton
main characteristics good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant better wear-resistant and anti-aging function than NR, lower prices. good cold & hot resistant best hot resistant and chemical resistant
quality of NR proportion 0.85 0.91~0.93 1.10 0.98 1.4~1.96
meni adhesive ML1+4 100 ℃ 40~100 45~80 45~60 liquid state 35~160
rubber physical performance hardness range ( SHORE A ) 30~100 20~90 50~95 20~95 60~90
anti-tensity (MPa) 7~20 7~20 7~20 3~10 7~16
elongation rate (%) 100~300 100~700 100~500 50~800 100~350
re-elasticity good middle good good middle
tearing force bad excellent good middle middle
wear-resistant good good good middle good
compress & distortion middle middle good excellent excellent
temperature range(℃) -60~150 -60~150 -60~150 -120~280 -50~300
climate resistant excellent excellent excellent excellent excellent
ozone proof excellent excellent excellent + excellent excellent +
electric performance excellent excellent good excellent good ~ excellent
gas penetrating resistant middle excellent less good bad excellent
oil-resistant and acid& alkali resistant oil-resistant bad middle good middle excellent
fire-resistant bad bad middle bad excellent
alcohol excellent excellent excellent excellent excellent
MEK good excellent less good excellent middle
water excellent excellent good ~ excellent excellent good ~ ecellent
high concentration inorganic acid good excellent excellent good excellent
low concentration inorganic acid excellent excellent excellent excellent excellent
high concentration alkali excellent excellent excellent excellent excellent
low concentration alkali excellent excellent excellent excellent excellent
application wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory



Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated 0Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated 1Embossed Air tightness Hypalon Marine Polyester Fabrics Rubber Coated 2
