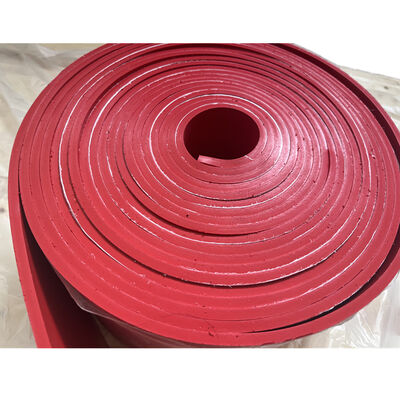

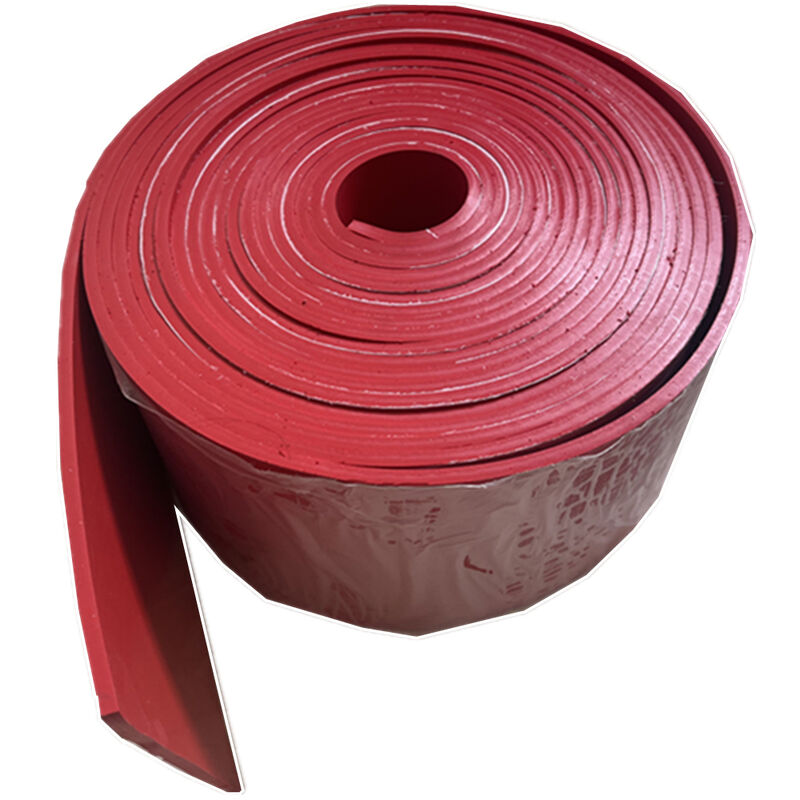

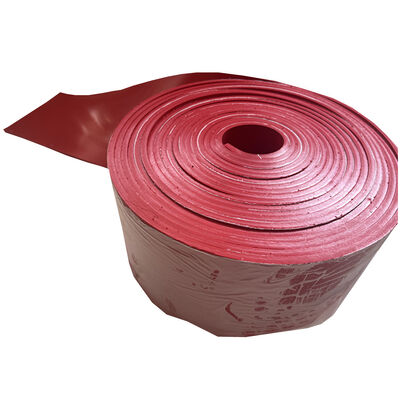

Natural Rubber Sealing System / Red Conveyor Skirt Board / Rubber Skirting Sheets
Product Specifications
| Material |
Hardness |
Height |
Thickness |
| Polyurethane |
90 shore A |
50mm |
5-9mm |
| Rubber |
55-70 shore A |
150mm/190mm |
14±1mm |
Standard length: 24m per roll, or customized as requested
Soft durometer urethane with exceptional tear resistance
Key Features & Benefits
- Exceptional durability and long service life
- Superior containment and sealing performance
- Reduces conveyor belt wear
- Low maintenance requirements and cost
Our rubber skirt board outperforms conventional skirt board rubber with extended lifespan. The Shore A Hardness of 50±5 provides optimal sealing against conveyor belts to contain materials effectively. The softer rubber composition minimizes belt wear while maintaining sealing integrity.
Packaging & Transportation
| Packing Method |
Packed in roll or flat sheet, 50-100kg/roll or according to specific client requirements |
| Packing Materials |
Inner PE film + outer woven plastic bags as standard, palletized for extra reinforcement if necessary |
| Shipping Marks |
Neutral packing with printed marks |
| Delivery Time |
15 days since receipt of PO and down payment |
| Freight Options |
Sea (FCL & LCL) or air freight |
| Custom Sizes |
We provide cutting services for special sizes |
| Lamination Services |
We provide extra lamination with PSA, textiles or other materials |
Frequently Asked Questions
What is your company's manufacturing capability?
Skypro is a professional manufacturer of rubber sheets with over two decades of experience. We rank among the top 10 largest rubber factories in China.
What is your annual production capacity?
We produce more than 18,000 tons of rubber sheet products annually.
How can I obtain samples?
We are pleased to offer free samples. New clients are expected to pay for delivery costs, which will be deducted from the payment for formal orders.
Rubber Material Properties Comparison
Comprehensive technical data for various rubber types including IR, SBR, BR, CR, NBR, EPDM, IIR, CSM, SIR, and FKM with detailed specifications on hardness, tensile strength, elongation, temperature resistance, chemical resistance, and application areas.
Thickness & Width Tolerance Specifications
| Thickness (mm) |
Tolerance (mm) |
Width (mm) |
Tolerance (mm) |
| 1.0 | ±0.1 | 500-2000 | ±20 |
| 1.5 | ±0.2 |
| 2.0 | ±0.3 |
| 2.5 | ±0.3 |
| 3.0 | ±0.4 |
| 4.0 | ±0.5 |
| 5.0 | ±0.5 |
| 6.0 | ±0.6 |
| 8.0 | ±0.8 |
| 10 | ±1.0 |
| 12 | ±1.2 |
| 14 | ±1.4 |
