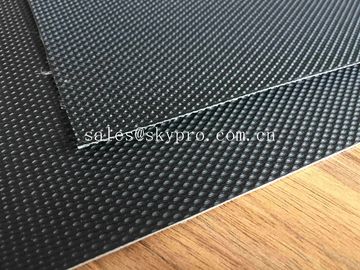

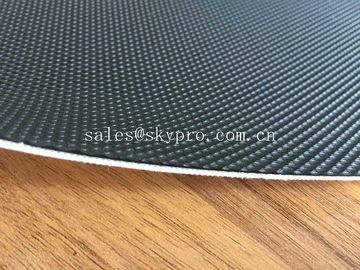

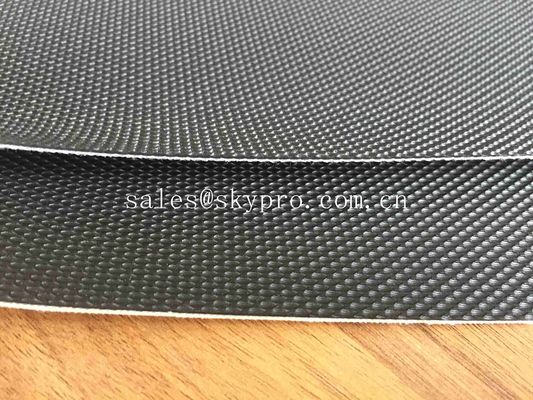

Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm

Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm

    • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm
    • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm
    • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm
    • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm
    • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm
    • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm
  • Strong PVC Conveyor Belt Balck Golf Treadmill Belt Surface Conveyor Belts 1.85mm

    Product Details:

    Place of Origin: China
    Brand Name: Skypro
    Certification: ROHS/Reach/SGS
    Model Number: SP22-56

    Payment & Shipping Terms:

    Minimum Order Quantity: 200.sqm
    Price: negotiable
    Packaging Details: olls,inner foam+ outer abrasion resistant canvas with hard cardboard tube inside
    Delivery Time: 15days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000 sq.m/day
    Contact Now
    Detailed Product Description
    Name: Golf Treadmill Belt Load Capacity: Strong
    Color: Black Working Temperature: -20℃/+80℃
    Tensile Strength: 160N/mm Type: Transmission Belt
    Elongation 1%: 8N/mm

    1.85mm Abrasion Resistant Balck Golf Treadmill Belt Surface Conveyor Belts



    Product name Treadmill Conveyor Belt

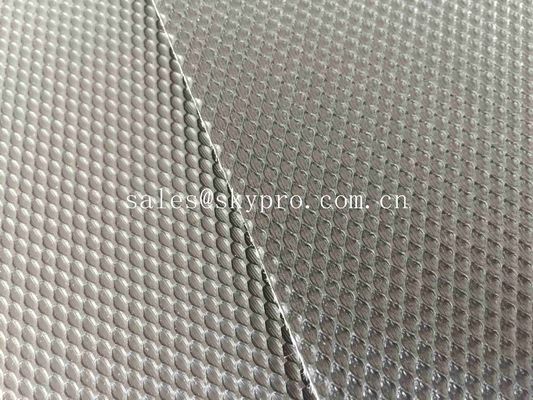

    Product Patterns: Flat, Grass, Golf, Diamond, Matte surface finish, Small round particles and etc.
    Product structure Structure Two plies cloth two plies pvc
    Color Black
    Fiber layers 2 plies
    Fiber class Laterial stability polyester
    Surface material PVC
    Surface pattern Golf

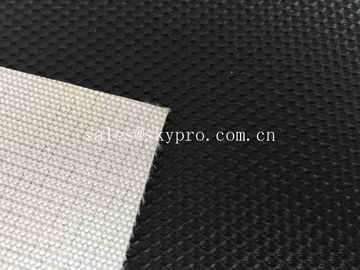

    Bottom material Conductive polyester textile
    Technical index Total thickness 2.1mm
    Surface coated thickness 0.7mm
    Weight 2.3kg/m2
    Maximum width 2000mm
    Elongation 1% force 8N/mm
    Tensile strengh 160N/mm
    Hardness shore A 75
    Working temrature -10~+90℃
    Minimum drum diameter 25mm
    Lateral stability Yes
    Note white, black, green, dark green,transparent, grey and all the colors at your request


    Features:

    lLow Noise, Flame Retardant

    lHigh Abrasion Resistance

    lPlasticizer Free

    lExcellent Matching Printing



    Advantages:

    1. high strength, thin belt body, light weight

    2. soft belt body into a good groove, good elasticity

    3. impact resistance, wear resistance, corrosion resistance

    4. applied in larger load, faster speed and long-distance transport of materials

    5. smoothly motion, no deviation.



    Packing and transportation:

    Packing way Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
    Packing material Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
    Shipping marks Neutral packing with printed marks.
    Delivery time 15 days since receipt of PO and down payment
    Freight Sea(FCL & LCL) or air freight
    Special size We provide cutting services for special sizes
    Lamination We provides extra lamination with PSA, textiles or other materials.



    FAQ(Frequently Asked Questions)

    1. What is the capability of your company ?
    Skypro is a professional manufacturer of rubber sheet for more than two decades.
    Top 10 biggest rubber factory in China.

    2.What is production capability each year?
    We produce more than 18000 tons of rubber sheet products each year.

    3.How can I get some samples?
    We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.

    our rubber is free of heavy metal and other hazardous ingrediants with ROHS/SGS certifical
