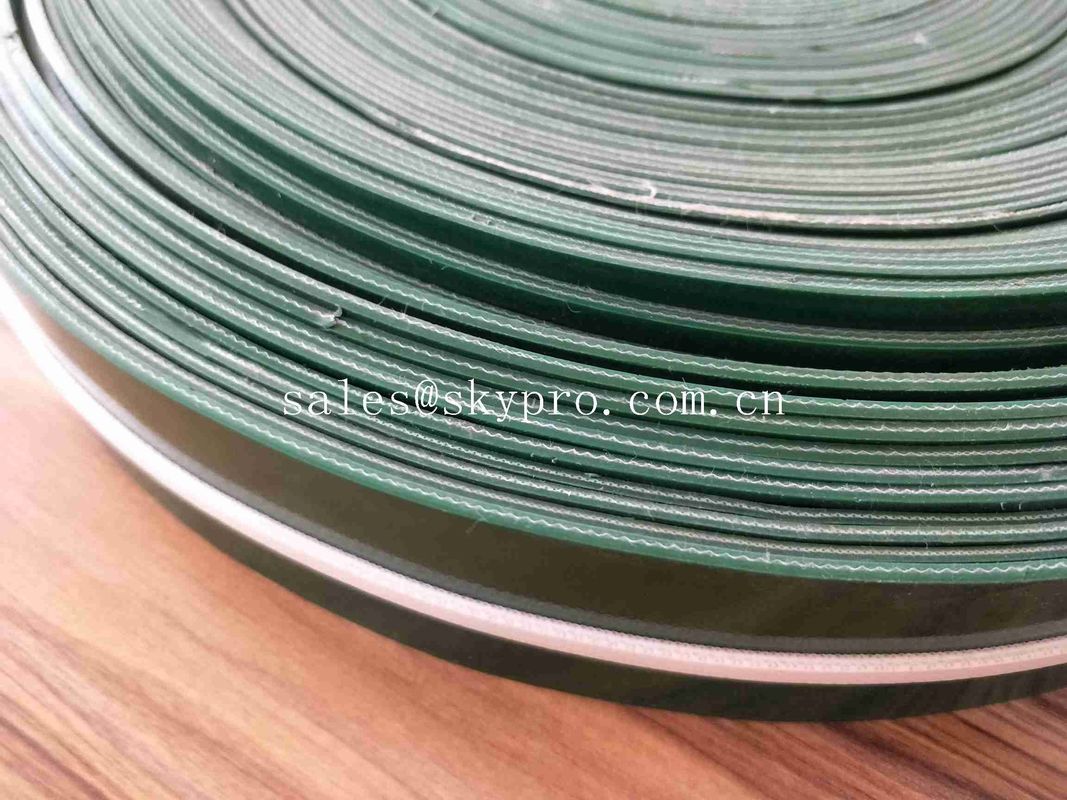

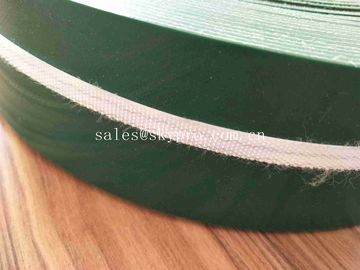

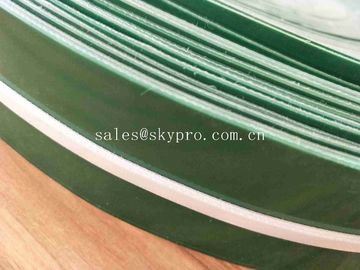

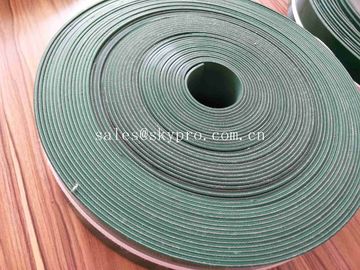

Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor

Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor

    • Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor
    • Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor
    • Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor
    • Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor
  • Anti - Slip Food Grade PVC Conveyor Belt Rubber Belt For Food Industry Conveyor

    Product Details:

    Place of Origin: China
    Brand Name: Skypro
    Certification: SGS/ROHS/REACH
    Model Number: EP100-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 sq.m
    Price: negotiable
    Packaging Details: rolls
    Contact Now
    Detailed Product Description
    Name: PVC Cleat Conveyor Belt Thickness: 4-30mm
    Feature: Oil Resistant, Heat/Cold Resistant Length: As Your Requirement
    Application: Food Processing, Medicine, Electronic Surface: Smooth, Patterned
    Type: Plain Belt, Cleated Belt, Sidewall Belt.etc

    Anti-slip Food Grade Standards PVC Conveyor Belt with Cleat and Sidewall for the Food Industry



    Product information:

    Light duty conveyor belts are manufactured for all applications with various fabrics impregnation like polyester, nylon, cotton, solid woven, fiberglass etc. Belts are available in different colors like green, white, black, blue and thickness from 0.5 mm to 15 mm up to 2000 mm width and with top surface coating Rubber, PVC, PU, TPU, PE, TPEE, Teflon, Silicone, etc. They can work in temperature ranging from -40 degree to 260 degree. Thery are able to meet with all types of Conveyors, whether horizontal, roller supported, troughed and inclined, etc.



    The main products include flat surface series, anti-slid series, It can also be added with baffle, skirt, sponge, guide bar etc. to meet various kind of application requiremnts.

    The anti-slid series / rough top belt are diversified in a lot of textures:



    Diamond, Chevron, Herringbone, Rib, Grid, Wave, Round and Oval nubs, Convex-tooth etc.



    Application:

    Food industry: dough processing,confectionery,meat poultry,dairy,agriculture,packaging

    Logistics/airport:distribution center belts,baggage handling belts.

    Industrial production:automatic industry,tyre industry,chemical industry,metal working,mechanical engineering,energy.

    Raw material:wood,marble industry.

    Sports and leisure:treadmill belts,skiing conveyor belts.skiing acceleration belts,power belt,special application.



    Tobacco industry:green leaf processing,primary processing,secondary processing.



    PVC light industry conveyor belt:
    Suitable for light industrial, packing light industrial, transport for tobacco, tea, pieces vegetable, fruit and so on. Also can be used in airport, post office, storage and etc.



    PU light industry conveyor belt:
    Widely used in food industry. Transport the material in bulk, canning and packed In box. The material includes grain, cooky, candy, vegetables, fruit, fowl, meat and so on.
    Also widely used in soft material industry. Used in those field, including tobacco, electron, textile, printing and dyeing, machine manufacturing, print and package, paper processing, pottery, marble, wood processing,car shell molding, cable fishing wire, aluminium parts processing and etc.



    Packing and transportation:

    Packing way Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
    Packing material Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
    Shipping marks Neutral packing with printed marks.
    Delivery time 15 days since receipt of PO and down payment
    Freight Sea(FCL & LCL) or air freight
    Special size We provide cutting services for special sizes
    Lamination We provides extra lamination with PSA, textiles or other materials.



    FAQ(Frequently Asked Questions)
    1. What is the capability of your company ?
    Skypro is a professional manufacturer of rubber sheet for more than two decades.
    Top 10 biggest rubber factory in China.

    2.What is production capability each year?
    We produce more than 18000 tons of rubber sheet products each year.

    3.How can I get some samples?
    We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.




    About Rubber



    rubber variety
    (ASTM )
    IR SBR BR CR NBR
    chemical structure Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber” Styrene Butadiene Rubber Polybutadiene Rubber Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene Butadiene Acrylnitrile Rubber,Nitrile Rubber
    main characteristics high flexibility, good comprehensive physical mechanic performance better wear-resistant and anti-aging function than NR, lower prices same wear-resistant with NR and better flexible and lower temperature resistant than NR good climate resistant, ozone proof, hot resistance and chemical resistant good oil-resistant, wear-resistant and anti-aging
    quality of NR proportion 0.93 0.94 0.93 1.23 0.96~1.02

    meni adhesive

    meni adhesive

    ML 1+4 100 ℃

    45 ~150 30~ 7 0 35~55 45~120 30~100
    rubber physical performance

    hardness range

    ( SHORE A )

    2 0~100 4 0~100 30~100 45~120 30~130
    anti-tensity (MPa) 7~27 7~24 7~20 7~27 7~27
    elongation rate (%) 100~ 700 100~ 700 100~ 700 100~ 600 100~700
    re-elasticity excellent + good excellent + excellent good
    tearing force excellent middle ~ good good good good
    wear-resistant excellent excellent excellent excellent excellent
    compress & distortion good good middle good good
    temperature range(℃) -75~90 -60~100 -100~100 -50~120 -50~120
    climate resistant middle middle middle excellent bad
    ozone proof bad middle bad good ~ excellent middle
    electric performance excellent middle good good bad ~ middle
    gas penetrating resistant middle middle middle good excellent
    oil-resistant and acid& alkali resistant oil-resistant bad bad bad good excellent
    fire-resistant bad bad bad middle good
    alcohol excellent excellent excellent excellent excellent
    MEK good good good good middle
    water excellent good ~ excellent bad good excellent
    high concentration inorganic acid middle bad bad middle middle
    low concentration inorganic acid good good good excellent good
    high concentration alkali good good good excellent good
    low concentration alkali good good good excellent good
    application tyre, rubber shoes, rubber pipe, adhesive tape, air spring tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller







    rubber variety
    (ASTM )
    EPDM IIR CSM SIR FKM
    chemical structure Ethylene Propylene Terpolymer Rubber Isobutene-Isoprene (butyl) Rubber Chlorosulfonated Polyethyelene Silicone Rubber Vinylidene Fluoride Hexaflyoropropylene Rubber,Viton
    main characteristics good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant better wear-resistant and anti-aging function than NR, lower prices. good cold & hot resistant best hot resistant and chemical resistant
    quality of NR proportion 0.85 0.91~0.93 1.10 0.98 1.4~1.96
    meni adhesive ML1+4 100 ℃ 40~100 45~80 45~60 liquid state 35~160
    rubber physical performance hardness range ( SHORE A ) 30~100 20~90 50~95 20~95 60~90
    anti-tensity (MPa) 7~20 7~20 7~20 3~10 7~16
    elongation rate (%) 100~300 100~700 100~500 50~800 100~350
    re-elasticity good middle good good middle
    tearing force bad excellent good middle middle
    wear-resistant good good good middle good
    compress & distortion middle middle good excellent excellent
    temperature range(℃) -60~150 -60~150 -60~150 -120~280 -50~300
    climate resistant excellent excellent excellent excellent excellent
    ozone proof excellent excellent excellent + excellent excellent +
    electric performance excellent excellent good excellent good ~ excellent
    gas penetrating resistant middle excellent less good bad excellent
    oil-resistant and acid& alkali resistant oil-resistant bad middle good middle excellent
    fire-resistant bad bad middle bad excellent
    alcohol excellent excellent excellent excellent excellent
    MEK good excellent less good excellent middle
    water excellent excellent good ~ excellent excellent good ~ ecellent
    high concentration inorganic acid good excellent excellent good excellent
    low concentration inorganic acid excellent excellent excellent excellent excellent
    high concentration alkali excellent excellent excellent excellent excellent
    low concentration alkali excellent excellent excellent excellent excellent
    application wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products

    axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory
