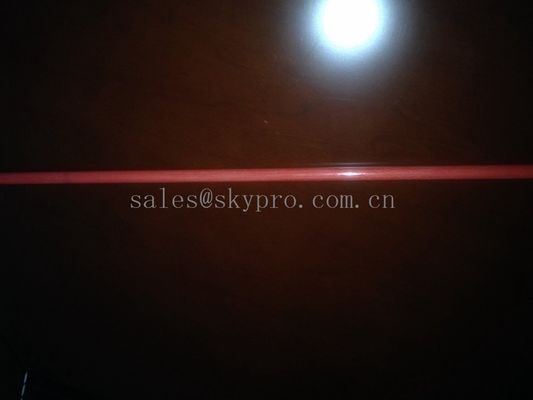

Structural Fiberglass reinforced plastic FRP bar / rod / pole / shaft

Structural Fiberglass reinforced plastic FRP bar / rod / pole / shaft

    • Structural Fiberglass reinforced plastic FRP bar /  rod /  pole / shaft
    • Structural Fiberglass reinforced plastic FRP bar /  rod /  pole / shaft
    • Structural Fiberglass reinforced plastic FRP bar /  rod /  pole / shaft
  • Structural Fiberglass reinforced plastic FRP bar /  rod /  pole / shaft

    Product Details:

    Place of Origin: China
    Brand Name: skypro
    Certification: SGS/RoHs
    Model Number: SP39-76

    Payment & Shipping Terms:

    Minimum Order Quantity: 200.sqm
    Price: negotiable
    Packaging Details: wooden pallets
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000 sq.m/day
    Contact Now
    Detailed Product Description
    Features: Corrosion And Chemical Resistance, Fire Resistant, Light Weight, Thermal, Electric Non-conductivity Material: FRP ( Fiberglass Reinforced Plastic)
    Structure: Grating,tube,pole,handrail,plate, I Beam Conditions: New
    Colors: Green,Black,White,Blue And Other Type: CR,XCR,VE

    1. Product Name: FRP tube,pipe



    2. Raw Material: Glass fiber + resin                     3. Color: Any color available



    4. Certificate: SGS, REACH



    5.Regular Sizes:



    6.0*3.0    7.0*3.4    8.0*4.0    9.0*6.5    10*4

    6.5*4.0    7.8*4.0    8.5*7.15  9.5*7.5    10.5*8.0



    6. Brand: OEM/ODM



    7.Performance:



    1). Lasting Performance

    2). Less Density:67% ~74% of aluminum

    3). High Strength

    4). Good Tenacity

    5). High Corrosion Resistance

    6). Excellent Structural Properties

    7). UV Resistant Inhibited

    8). Environmentally Safe

    9). Variety Of Colors For Choice

    10). Non-Magnetic Electromagnetic

    11). Consistent Cross Section

    12). Dimensional Stability

    13). Non-Conductive Thermally And Electrically

    14). Wide Temperature Range Use

    15). Superior Dimensional Stability



    9.Application:

    1). Outdoor activities:  tent Pole, kite Rod, arrow shaft, ski pole, fishing rod, golf shaft, sail batten, hockey stick,

    kick board, skate boards, paddle shafts, bows and arrows, crossbows, golf shafts, slide guides, boat, kayak

    2). Tool: umbrella shaft, umbrella rod, curtain rod, fence post, rail, handrail, frame for case and bags, antenna, CB

     antennas, flag pole, oil sucking rods, bolt, stair, ladder, waste treatment equipment, greenhouse structures, scaffold,

    portable work platforms, cooling tower, luggage rack, window/door frame, sign post, bridge structure, bus bar

    supports,tool handles, bike flags, flag poles, floor gratings, lading bars in trucks and railcars, shoe soles,







    Technical Data of of pultruded FRP products



    1.  Mechanical property



    Tensile Strength

    680-850

    Mpa

    Tensile Strength Modulus

    35-45

    Gpa

    Bending Strength

    600-900

    Mpa

    Bending Strength Modulus

    35-42

    Gpa

    Compression Strength

    300-390

    Mpa

    Compression Strength Modulus

    35-38

    Gpa

    Shearing Strength

    30-35

    Mpa

    Anti-compact Tenacity

    500-550

    Kj/m2

    2. Dielectrical property



    Volume Resistivity

    >1012 Ω.cm



    Surface Resistivity

    >1012 Ω.cm



    Permittivity

    3-5



    Dielectric Loss

    <0.05



    Breakdown Voltage

    >16 KV/mm



    Arc Resistivity

    >180 S



    3. Flame retardancy



    Specific Gravity

    1.8-1.95



    Barcol Hardness

    40-55



    Oxygen Index

    28-32



    Fire Hazard Testing

    V-0  grade



    Note: the above data base material:-phthalate polyester resin, fiber glass, the individual data come from Shanghai Composite Inspection Center after multiple test and summary.
