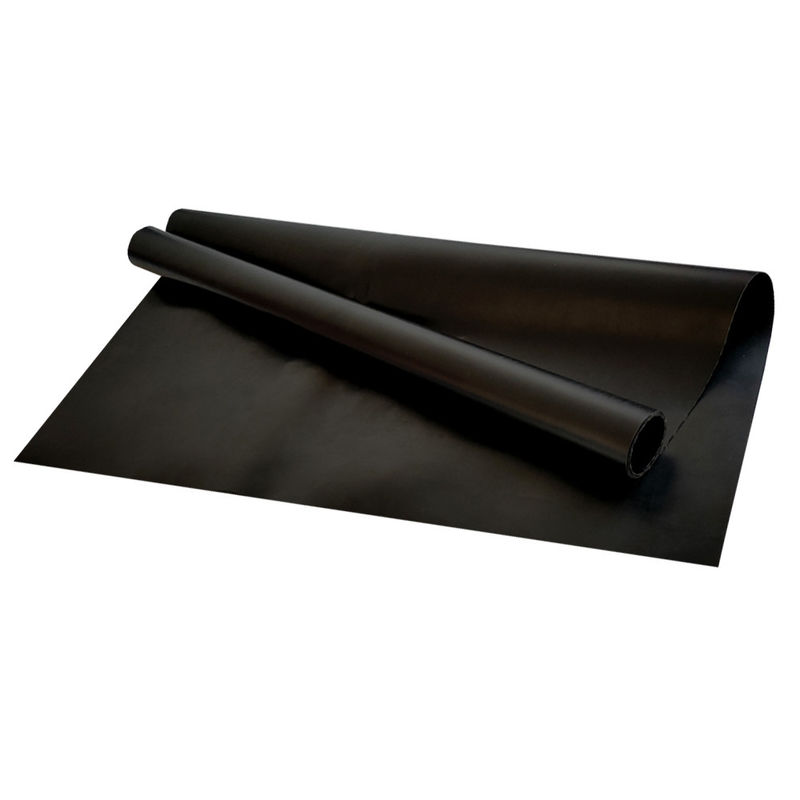

3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock

3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock

    • 3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock
    • 3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock
    • 3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock
  • 3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock

    Product Details:

    Place of Origin: China
    Brand Name: Skypro
    Certification: ROHS/SGS
    Model Number: SK1002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000KG
    Price: negotiable
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 10 working days after received your payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000ton per month
    Contact Now
    Detailed Product Description
    Product Name: Product Name Surface: Smooth
    Tensile Strength: 2-20Mpa Width: From 0.90 To 2.0m
    Application: Industrial Commercial Grade
    High Light:

    3MM rubber sheet reinforced

    ,

    20Mpa Anti Shock Rubber Sheet Roll

    ,

    Nylon Insertion rubber sheet reinforced

    3MM Thickness Cotton Nylon Insertion Rubber Sheet Reinforced With Fabric



    Product Rubber sheet with cloth insertion
    Thickness Thick 2-100mm
    Width 1m, 1.2m, 1.5m, 2m
    Special Gravity 1.8g/cm3
    Tensile Strength 2.8-30MPa
    Hardness 65±5 Shore A
    Elongation at break 200%-600%
    Temperature Range -20-80℃
    UV/Ozone/Chemical resistance Normal
    Fire Resistant Normal
    Insulation 5-20Kv
    Abrasion DIN 400-450mm3
    Color Black
    Type Soft and Solid
    Shape Sheet and Plate
    Producing method Pressed
    Features Wear Resistance, Aging Resistance,Water Resistance, Anti-Shock, Excellent Sealing,High abrasion resistance, high tensile strength
    Application General use, applied to gasket,and salt, ore, sand, coal, mineral, chemical, power plant, metallurgy, stope etc.



    Nanjing Skypro Rubber & Plastic Co., Ltd is specialized in manufacturing high performance rubber sheets made of NR,SBR,CR,NBR,EPDM,CSM,Viton,Silicone, etc. Our rubber sheets are made according to the client’s specification. These sheets offer durability, safety and strength. We produce rubber sheets in various size and patterns. The rubber sheets produced by us are used in variant applications like flooring purpose, dampers, belts and bumpers. We manufacture self-adhesive rubber mat and Styrene-Butadiene Rubber Sheets(SBR)

    A polymer used in the manufacture of expanded rubber. It is very economical and possesses no unique chemical resistance properties. SBR rubber can be compounded to provide very fine abrasion, wear, and tensile qualities. SBR can be readily substituted for natural rubber in many applications with significant cost savings. Resilience is about the same as natural rubber. SBR rubber is a staple in the HVAC and construction industry as it is versatile, flexible and tough enough to stand up. SBR rubber is a good choice when deciding to choose a material that has great mechanical properties and flexibility.

    Natural Rubber Sheets(NR)

    These rubber sheets offer outstanding physical properties along with temperature resistance used for service temperature up to 80°C. This product is great solution for variant industries but it has poor resistance to petroleum-based ozone, fluids and sunlight.

    Neoprene Rubber Sheets(CR)

    These sheets are best for acids, alkalis and open flames. The neoprene sheets supplied by us are outstanding for high temperature range of 40° C to 120° C. These sheets are meagerly used in different organizations like refineries, processing units and chemical industries.

    Nitrile Rubber Sheets(NBR)

    These sheets have excellent resistance for petroleum products and many more industries like oil resistant seals and gaskets. The nitrile rubber sheets stocked by us can easily work on highest temperature of 110 F. These sheets contain good physical properties like abrasion resistance and good ageing resistance.

    Silicone Rubber Sheets(Q)

    These sheets contain good resistance for chemicals, acids and alkalis. These retain electrometric properties at any temperature. It stands at 200 C easily. These sheets have high resistance for ozone, ultraviolet radiation and oxygen but these are not good for oil industries.

    E.P.D.M Rubber Sheets(EPDM)

    The E.P.D.M rubber sheets made by us have outstanding compatibility with huge range of chemicals and intermediates. These sheets are extensively used in chemical, fertilizer plants and pharmaceutical industries.

    Viton Rubber Sheets(FPM/FKM)

    The viton sheets produced by us are used for specific industries of heat and oil resistance. These exhibit excellent resistance for ageing and flame.



    Packing and transportation:

    Packing way Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
    Packing material Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
    Shipping marks Neutral packing with printed marks.
    Delivery time 15 days since receipt of PO and down payment
    Freight Sea(FCL & LCL) or air freight
    Special size We provide cutting services for special sizes
    Lamination We provides extra lamination with PSA, textiles or other materials.



    FAQ(Frequently Asked Questions)

    1. What is the capability of your company ?
    Skypro is a professional manufacturer of rubber sheet for more than two decades.
    Top 10 biggest rubber factory in China.

    2.What is production capability each year?
    We produce more than 18000 tons of rubber sheet products each year.

    3.How can I get some samples?

    We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.

    About Rubber

    rubber variety
    (ASTM )
    IR SBR BR CR NBR
    chemical structure Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber” Styrene Butadiene Rubber Polybutadiene Rubber Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene Butadiene Acrylnitrile Rubber,Nitrile Rubber
    main characteristics high flexibility, good comprehensive physical mechanic performance better wear-resistant and anti-aging function than NR, lower prices same wear-resistant with NR and better flexible and lower temperature resistant than NR good climate resistant, ozone proof, hot resistance and chemical resistant good oil-resistant, wear-resistant and anti-aging
    quality of NR proportion 0.93 0.94 0.93 1.23 0.96~1.02

    meni adhesive

    meni adhesive

    ML 1+4 100 ℃

    45 ~150 30~ 7 0 35~55 45~120 30~100
    rubber physical performance

    hardness range

    ( SHORE A )

    2 0~100 4 0~100 30~100 45~120 30~130
    anti-tensity (MPa) 7~27 7~24 7~20 7~27 7~27
    elongation rate (%) 100~ 700 100~ 700 100~ 700 100~ 600 100~700
    re-elasticity excellent + good excellent + excellent good
    tearing force excellent middle ~ good good good good
    wear-resistant excellent excellent excellent excellent excellent
    compress & distortion good good middle good good
    temperature range(℃) -75~90 -60~100 -100~100 -50~120 -50~120
    climate resistant middle middle middle excellent bad
    ozone proof bad middle bad good ~ excellent middle
    electric performance excellent middle good good bad ~ middle
    gas penetrating resistant middle middle middle good excellent
    oil-resistant and acid& alkali resistant oil-resistant bad bad bad good excellent
    fire-resistant bad bad bad middle good
    alcohol excellent excellent excellent excellent excellent
    MEK good good good good middle
    water excellent good ~ excellent bad good excellent
    high concentration inorganic acid middle bad bad middle middle
    low concentration inorganic acid good good good excellent good
    high concentration alkali good good good excellent good
    low concentration alkali good good good excellent good
    application tyre, rubber shoes, rubber pipe, adhesive tape, air spring tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller
    rubber variety
    (ASTM )
    EPDM IIR CSM SIR FKM
    chemical structure Ethylene Propylene Terpolymer Rubber Isobutene-Isoprene (butyl) Rubber Chlorosulfonated Polyethyelene Silicone Rubber Vinylidene Fluoride Hexaflyoropropylene Rubber,Viton
    main characteristics good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant better wear-resistant and anti-aging function than NR, lower prices. good cold & hot resistant best hot resistant and chemical resistant
    quality of NR proportion 0.85 0.91~0.93 1.10 0.98 1.4~1.96
    meni adhesive ML1+4 100 ℃ 40~100 45~80 45~60 liquid state 35~160
    rubber physical performance hardness range ( SHORE A ) 30~100 20~90 50~95 20~95 60~90
    anti-tensity (MPa) 7~20 7~20 7~20 3~10 7~16
    elongation rate (%) 100~300 100~700 100~500 50~800 100~350
    re-elasticity good middle good good middle
    tearing force bad excellent good middle middle
    wear-resistant good good good middle good
    compress & distortion middle middle good excellent excellent
    temperature range(℃) -60~150 -60~150 -60~150 -120~280 -50~300
    climate resistant excellent excellent excellent excellent excellent
    ozone proof excellent excellent excellent + excellent excellent +
    electric performance excellent excellent good excellent good ~ excellent
    gas penetrating resistant middle excellent less good bad excellent
    oil-resistant and acid& alkali resistant oil-resistant bad middle good middle excellent
    fire-resistant bad bad middle bad excellent
    alcohol excellent excellent excellent excellent excellent
    MEK good excellent less good excellent middle
    water excellent excellent good ~ excellent excellent good ~ ecellent
    high concentration inorganic acid good excellent excellent good excellent
    low concentration inorganic acid excellent excellent excellent excellent excellent
    high concentration alkali excellent excellent excellent excellent excellent
    low concentration alkali excellent excellent excellent excellent excellent
    application wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory



    3MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock 03MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock 13MM Nylon Insertion 20Mpa Rubber Sheet Reinforced Anti Shock 2
