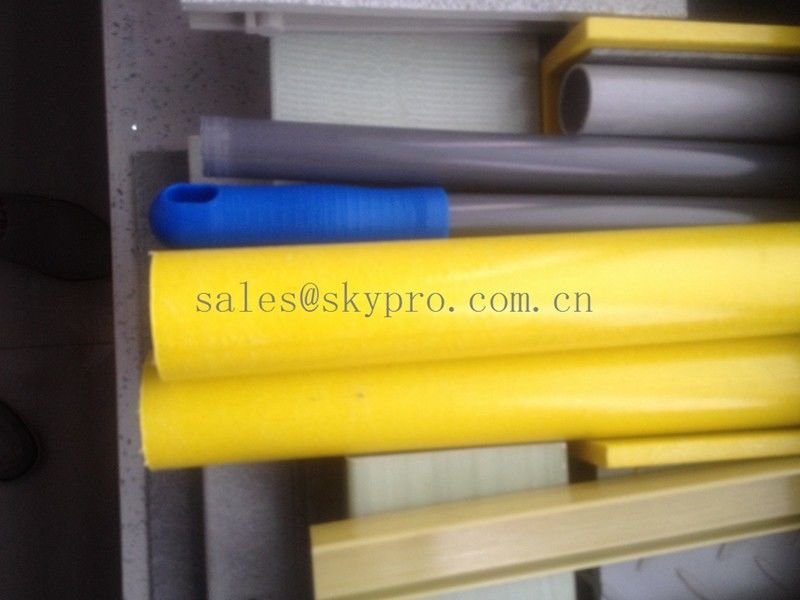

FRP Profiles bar / rod / pole / shaft , Commercial FRP Structural profiles

FRP Profiles bar / rod / pole / shaft , Commercial FRP Structural profiles

  • FRP Profiles bar /  rod /  pole / shaft , Commercial FRP Structural profiles
FRP Profiles bar /  rod /  pole / shaft , Commercial FRP Structural profiles
Product Details:
Place of Origin: China
Brand Name: skypro
Certification: SGS/RoHs
Model Number: SP39-76
Payment & Shipping Terms:
Minimum Order Quantity: 200.sqm
Price: negotiable
Packaging Details: wooden pallets
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sq.m/day
Contact Now
Detailed Product Description
Features: Corrosion And Chemical Resistance, Fire Resistant, Light Weight, Thermal, Electric Non-conductivity Material: FRP ( Fiberglass Reinforced Plastic)
Structure: Grating,tube,pole,handrail,plate, I Beam Conditions: New
Colors: Green,Black,White,Blue And Other Type: CR,XCR,VE
High Light:

FRP Structural profiles

,

pultruded FRP profiles

1. Product Name: FRP tube,pipe



2. Raw Material: Glass fiber + resin                     3. Color: Any color available



4. Certificate: SGS, REACH



5.Regular Sizes:



6.0*3.0    7.0*3.4    8.0*4.0    9.0*6.5    10*4

6.5*4.0    7.8*4.0    8.5*7.15  9.5*7.5    10.5*8.0



6. Brand: OEM/ODM



7.Performance:



1). Lasting Performance

2). Less Density:67% ~74% of aluminum

3). High Strength

4). Good Tenacity

5). High Corrosion Resistance

6). Excellent Structural Properties

7). UV Resistant Inhibited

8). Environmentally Safe

9). Variety Of Colors For Choice

10). Non-Magnetic Electromagnetic

11). Consistent Cross Section

12). Dimensional Stability

13). Non-Conductive Thermally And Electrically

14). Wide Temperature Range Use

15). Superior Dimensional Stability



9.Application:

1). Outdoor activities:  tent Pole, kite Rod, arrow shaft, ski pole, fishing rod, golf shaft, sail batten, hockey stick,

kick board, skate boards, paddle shafts, bows and arrows, crossbows, golf shafts, slide guides, boat, kayak

2). Tool: umbrella shaft, umbrella rod, curtain rod, fence post, rail, handrail, frame for case and bags, antenna, CB

 antennas, flag pole, oil sucking rods, bolt, stair, ladder, waste treatment equipment, greenhouse structures, scaffold,

portable work platforms, cooling tower, luggage rack, window/door frame, sign post, bridge structure, bus bar

supports,tool handles, bike flags, flag poles, floor gratings, lading bars in trucks and railcars, shoe soles,







Technical Data of of pultruded FRP products



  1.  Mechanical property



Tensile Strength

680-850

Mpa

Tensile Strength Modulus

35-45

Gpa

Bending Strength

600-900

Mpa

Bending Strength Modulus

35-42

Gpa

Compression Strength

300-390

Mpa

Compression Strength Modulus

35-38

Gpa

Shearing Strength

30-35

Mpa

Anti-compact Tenacity

500-550

Kj/m2

2. Dielectrical property



Volume Resistivity

>1012 Ω.cm



Surface Resistivity

>1012 Ω.cm



Permittivity

3-5



Dielectric Loss

<0.05



Breakdown Voltage

>16 KV/mm



Arc Resistivity

>180 S



3. Flame retardancy



Specific Gravity

1.8-1.95



Barcol Hardness

40-55



Oxygen Index

28-32



Fire Hazard Testing

V-0  grade



Note: the above data base material:-phthalate polyester resin, fiber glass, the individual data come from Shanghai Composite Inspection Center after multiple test and summary.
