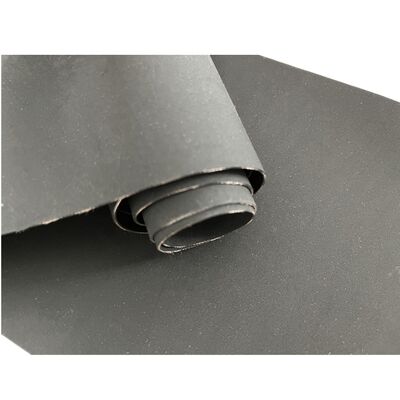

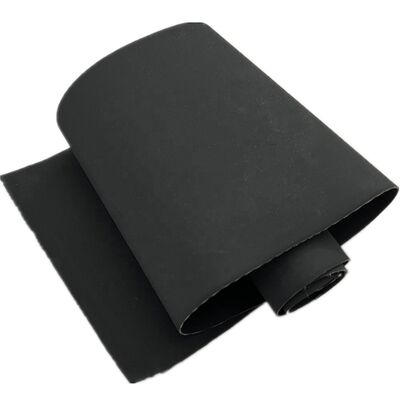

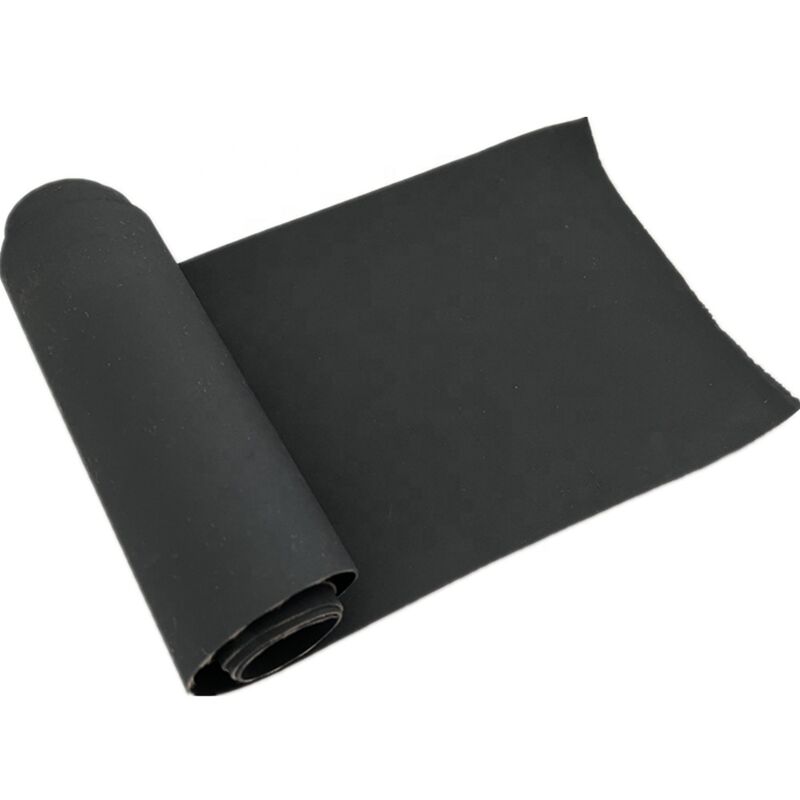

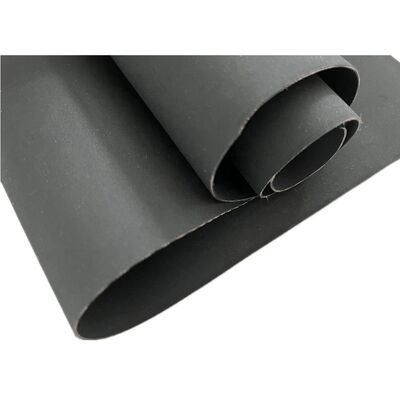

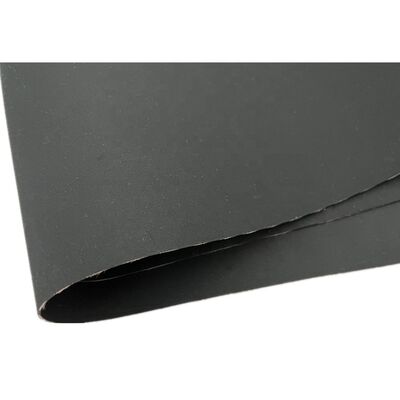

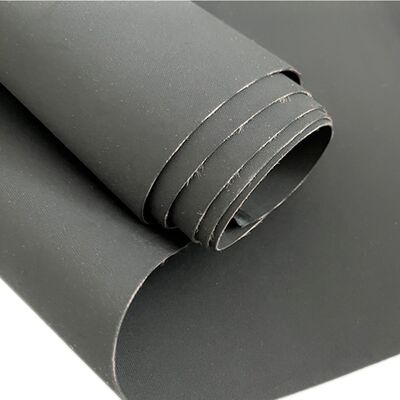

Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR

Product Details:

Place of Origin:	China
Brand Name:	skypro
Model Number:	SK3002

Payment & Shipping Terms:

Minimum Order Quantity:	200

Contact Now

Detailed Product Description

Material:	NR + SBR	Thickness:	1-50mm
Hardness:	60 +/- 5 Shore	Production Thickness:	2-10 Mm
Length:	10-50 M	Width:	500mm-3000mm
Insertion Material:	Cotton, Nylon Or EP	Surface Finish:	Smooth Or Textured
Number Of Plies:	1 Or 2 Or 3 Plies	Hardness Shore:	A 65 +/- 5
Density:	1.5 G/cm3	Tensile Strength:	3 Mpa
Elongation:	200-300%	Color:	Black
Processing Service:	Moulding, Cutting
Highlight:	Nylon insert rubber gasket , SBR neoprene rubber sheet , EPDM cloth insertion gasket

Cloth Insertion Gasket Nylon Insert Rubber Sheet

High-performance fabric-reinforced rubber sheet with SBR, NBR, EPDM, or NR materials for industrial gasketing applications.

Product Specifications

Product Name	Cloth Insertion Rubber Sheet
Material	SBR
Production Range	Thickness: 2-10 mm Length: 10-50 m Width: 500mm-3000mm
Color	Black
Insertion Material	Cotton, nylon or EP
Surface Finish	Smooth or textured
Number of Plies	1, 2 or 3 plies
Hardness	Shore A 65 +/- 5
Density	1.5 g/cm³
Tensile Strength	3 MPa
Elongation	200-300%

Key Features

Made with SBR rubber with incremental cloth insert reinforcement throughout material thickness
Enhanced durability and superior strength under both hot and cold loads
Primarily used in gasketing applications as high-strength diaphragms
Ideal for high-pressure and low-pressure junction applications

Packaging & Transportation

Packing Method	Rolled or flat sheet, 50-100kg/roll or custom specifications
Packing Material	Inner PE film + outer woven plastic bags, palletized for extra reinforcement
Shipping Marks	Neutral packing with printed marks
Delivery Time	15 days after PO and down payment receipt
Freight Options	Sea (FCL & LCL) or air freight
Special Sizes	Custom cutting services available
Lamination	Additional lamination with PSA, textiles, or other materials
