Place of Origin: | China |
Brand Name: | Skypro |
Certification: | ROHS/SGS |
Model Number: | SK1002 |
Minimum Order Quantity: | 1000KG |
---|---|
Price: | negotiable |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000ton per month |
Product Name: | Product Name | Surface: | Smooth |
---|---|---|---|
Tensile Strength: | 2-20Mpa | Width: | From 0.90 To 2.0m |
Application: | Industrial Commercial Grade | ||
High Light: | NBR Rubber Sheet,EPDM Rubber Sheet,1Ply Cloth Inserted Rubber Sheet |

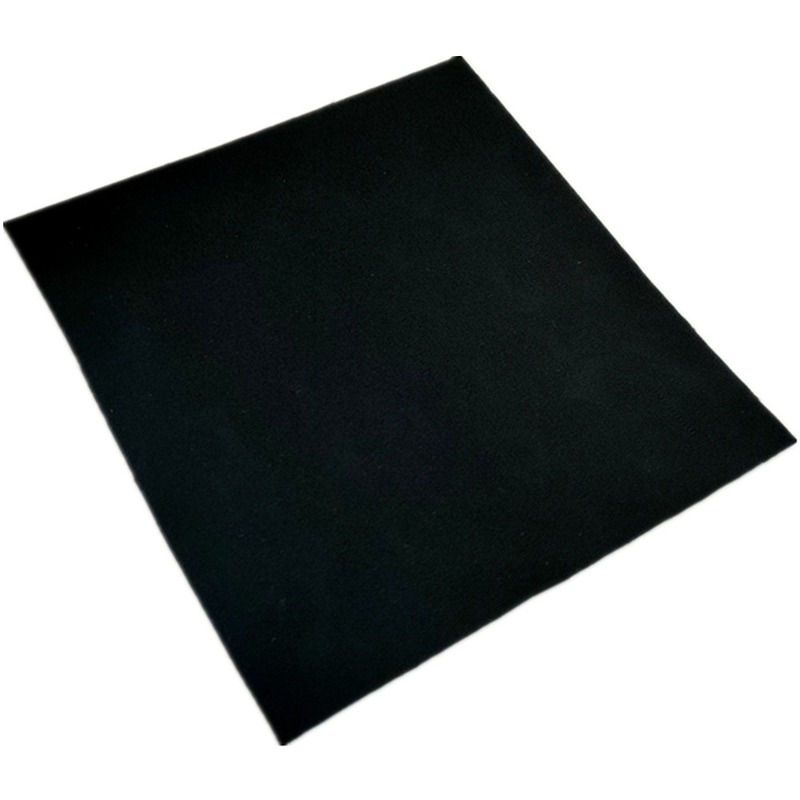

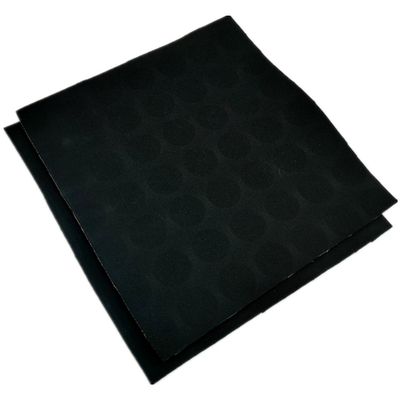

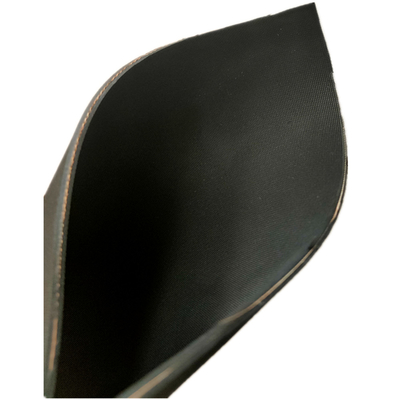

SBR NBR CR EPDM Rubber Sheet With 1 Ply Cloth Inserted
Product | Rubber sheet with cloth insertion |
Thickness | Thick 2-100mm |
Width | 1m, 1.2m, 1.5m, 2m |
Special Gravity | 1.8g/cm3 |
Tensile Strength | 2.8-30MPa |
Hardness | 65±5 Shore A |
Elongation | at break 200%-600% |
Temperature Range | -20-80℃ |
UV/Ozone/Chemical resistance | Normal |
Fire Resistant | Normal |
Insulation | 5-20Kv |
Abrasion DIN | 400-450mm3 |
Color | Black |
Type | Soft and Solid |
Shape | Sheet and Plate |
Producing method | Pressed |
Features | Wear Resistance, Aging Resistance,Water Resistance, Anti-Shock, Excellent Sealing,High abrasion resistance, high tensile strength |
Application | General use, applied to gasket,and salt, ore, sand, coal, mineral, chemical, power plant, metallurgy, stope etc. |
Nanjing Skypro Rubber & Plastic Co., Ltd is specialized in manufacturing high performance rubber sheets made of NR,SBR,CR,NBR,EPDM,CSM,FKM,Silicone, etc. Our rubber sheets are made according to the client’s specification. These sheets offer durability, safety and strength. We produce rubber sheets in various size and patterns. The rubber sheets produced by us are used in variant applications like flooring purpose, dampers, belts and bumpers. We manufacture self-adhesive rubber mat and Styrene-Butadiene Rubber Sheets(SBR)
A polymer used in the manufacture of expanded rubber. It is very economical and possesses no unique chemical resistance properties. SBR rubber can be compounded to provide very fine abrasion, wear, and tensile qualities. SBR can be readily substituted for natural rubber in many applications with significant cost savings. Resilience is about the same as natural rubber. SBR rubber is a staple in the HVAC and construction industry as it is versatile, flexible and tough enough to stand up. SBR rubber is a good choice when deciding to choose a material that has great mechanical properties and flexibility.
Natural Rubber Sheets(NR)
These rubber sheets offer outstanding physical properties along with temperature resistance used for service temperature up to 80°C. This product is great solution for variant industries but it has poor resistance to petroleum-based ozone, fluids and sunlight.
Neoprene Rubber Sheets(CR)
These sheets are best for acids, alkalis and open flames. The neoprene sheets supplied by us are outstanding for high temperature range of 40° C to 120° C. These sheets are meagerly used in different organizations like refineries, processing units and chemical industries.
Nitrile Rubber Sheets(NBR)
These sheets have excellent resistance for petroleum products and many more industries like oil resistant seals and gaskets. The nitrile rubber sheets stocked by us can easily work on highest temperature of 110 F. These sheets contain good physical properties like abrasion resistance and good ageing resistance.
Silicone Rubber Sheets(Q)
These sheets contain good resistance for chemicals, acids and alkalis. These retain electrometric properties at any temperature. It stands at 200 C easily. These sheets have high resistance for ozone, ultraviolet radiation and oxygen but these are not good for oil industries.
E.P.D.M Rubber Sheets(EPDM)
The E.P.D.M rubber sheets made by us have outstanding compatibility with huge range of chemicals and intermediates. These sheets are extensively used in chemical, fertilizer plants and pharmaceutical industries.
FKM Rubber Sheets(FPM/FKM)
The FKM sheets produced by us are used for specific industries of heat and oil resistance. These exhibit excellent resistance for ageing and flame.
Packing and transportation:
Packing way | Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients |
Packing material | Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary |
Shipping marks | Neutral packing with printed marks. |
Delivery time | 15 days since receipt of PO and down payment |
Freight | Sea(FCL & LCL) or air freight |
Special size | We provide cutting services for special sizes |
Lamination | We provides extra lamination with PSA, textiles or other materials. |
FAQ(Frequently Asked Questions)
1. What is the capability of your company ?
Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.
2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.
3.How can I get some samples?
We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.
rubber variety (ASTM ) |
IR | SBR | BR | CR | NBR | |
chemical structure | Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber” | Styrene Butadiene Rubber | Polybutadiene Rubber | Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene | Butadiene Acrylnitrile Rubber,Nitrile Rubber | |
main characteristics | high flexibility, good comprehensive physical mechanic performance | better wear-resistant and anti-aging function than NR, lower prices | same wear-resistant with NR and better flexible and lower temperature resistant than NR | good climate resistant, ozone proof, hot resistance and chemical resistant | good oil-resistant, wear-resistant and anti-aging | |
quality of NR | proportion | 0.93 | 0.94 | 0.93 | 1.23 | 0.96~1.02 |
meni adhesive meni adhesive ML 1+4 100 ℃ |
45 ~150 | 30~ 7 0 | 35~55 | 45~120 | 30~100 | |
rubber physical performance |
hardness range ( SHORE A ) |
2 0~100 | 4 0~100 | 30~100 | 45~120 | 30~130 |
anti-tensity (MPa) | 7~27 | 7~24 | 7~20 | 7~27 | 7~27 | |
elongation rate (%) | 100~ 700 | 100~ 700 | 100~ 700 | 100~ 600 | 100~700 | |
re-elasticity | excellent + | good | excellent + | excellent | good | |
tearing force | excellent | middle ~ good | good | good | good | |
wear-resistant | excellent | excellent | excellent | excellent | excellent | |
compress & distortion | good | good | middle | good | good | |
temperature range(℃) | -75~90 | -60~100 | -100~100 | -50~120 | -50~120 | |
climate resistant | middle | middle | middle | excellent | bad | |
ozone proof | bad | middle | bad | good ~ excellent | middle | |
electric performance | excellent | middle | good | good | bad ~ middle | |
gas penetrating resistant | middle | middle | middle | good | excellent | |
oil-resistant and acid& alkali resistant | oil-resistant | bad | bad | bad | good | excellent |
fire-resistant | bad | bad | bad | middle | good | |
alcohol | excellent | excellent | excellent | excellent | excellent | |
MEK | good | good | good | good | middle | |
water | excellent | good ~ excellent | bad | good | excellent | |
high concentration inorganic acid | middle | bad | bad | middle | middle | |
low concentration inorganic acid | good | good | good | excellent | good | |
high concentration alkali | good | good | good | excellent | good | |
low concentration alkali | good | good | good | excellent | good | |
application | tyre, rubber shoes, rubber pipe, adhesive tape, air spring | tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape | car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe | wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics | oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller |
rubber variety (ASTM ) |
EPDM | IIR | CSM | SIR | FKM | |
chemical structure | Ethylene Propylene Terpolymer Rubber | Isobutene-Isoprene (butyl) Rubber | Chlorosulfonated Polyethyelene | Silicone Rubber | Vinylidene Fluoride Hexaflyoropropylene Rubber,FKM | |
main characteristics | good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber | good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant | better wear-resistant and anti-aging function than NR, lower prices. | good cold & hot resistant | best hot resistant and chemical resistant | |
quality of NR | proportion | 0.85 | 0.91~0.93 | 1.10 | 0.98 | 1.4~1.96 |
meni adhesive ML1+4 100 ℃ | 40~100 | 45~80 | 45~60 | liquid state | 35~160 | |
rubber physical performance | hardness range ( SHORE A ) | 30~100 | 20~90 | 50~95 | 20~95 | 60~90 |
anti-tensity (MPa) | 7~20 | 7~20 | 7~20 | 3~10 | 7~16 | |
elongation rate (%) | 100~300 | 100~700 | 100~500 | 50~800 | 100~350 | |
re-elasticity | good | middle | good | good | middle | |
tearing force | bad | excellent | good | middle | middle | |
wear-resistant | good | good | good | middle | good | |
compress & distortion | middle | middle | good | excellent | excellent | |
temperature range(℃) | -60~150 | -60~150 | -60~150 | -120~280 | -50~300 | |
climate resistant | excellent | excellent | excellent | excellent | excellent | |
ozone proof | excellent | excellent | excellent + | excellent | excellent + | |
electric performance | excellent | excellent | good | excellent | good ~ excellent | |
gas penetrating resistant | middle | excellent | less good | bad | excellent | |
oil-resistant and acid& alkali resistant | oil-resistant | bad | middle | good | middle | excellent |
fire-resistant | bad | bad | middle | bad | excellent | |
alcohol | excellent | excellent | excellent | excellent | excellent | |
MEK | good | excellent | less good | excellent | middle | |
water | excellent | excellent | good ~ excellent | excellent | good ~ ecellent | |
high concentration inorganic acid | good | excellent | excellent | good | excellent | |
low concentration inorganic acid | excellent | excellent | excellent | excellent | excellent | |
high concentration alkali | excellent | excellent | excellent | excellent | excellent | |
low concentration alkali | excellent | excellent | excellent | excellent | excellent | |
application | wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line | interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line | climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller | axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products | axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory |
