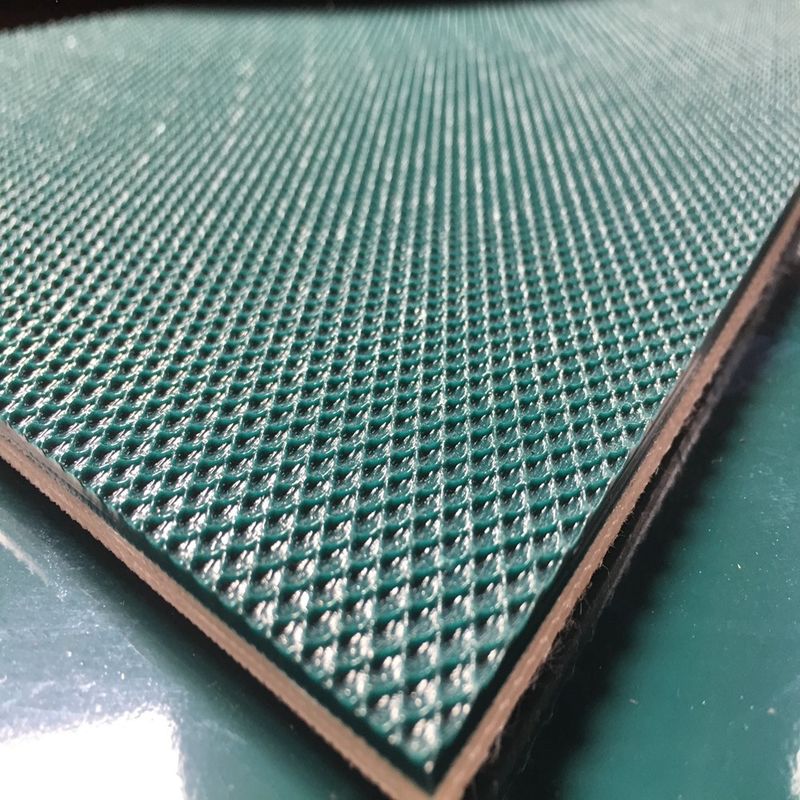

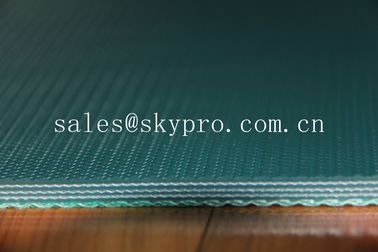

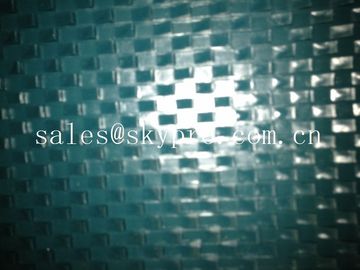

Industrial PVC Conveyor Belt Belting 7mm For Stone / Ceramic / Marble

PVC conveyor belt  / transmission belt for stone, ceramic, marble processing industry

We reserve series of transmission belt specially for meeting the conveying requests from the stone industry. Variable surface textures available among the category which is widely applied in manufacturing artificial marble, artificial wood plate, synthetic resin plate, ceramic tile etc.

Our transmission belt for stoneware industry features high anti-impact and good wear-resistance and are able to meet the requests for all lines of production of stone including conveying, polishing, burnishing etc

Clients can choose suitable belts according to the mechanical rubbing down pressure, running speed ,processing agent etc., achieving stable running and concord effect between machine and belt.

Technical Data:

Structure: 3 plies of textiles & 3 plies of polymers

Model: SP39-76/4

Thickness:7.0mm

Tensile force for 1% elongation:50N/mm

Minimum pulley diameter:350mm

Maximum production width: 2000mm

Structure: 4 plies of textiles & 4 plies of polymers

Model: SP49-76/4

Thickness:8.9mm

Tensile force for 1% elongation:70N/mm

Minimum pulley diameter:450mm

Maximum production width: 2000mm

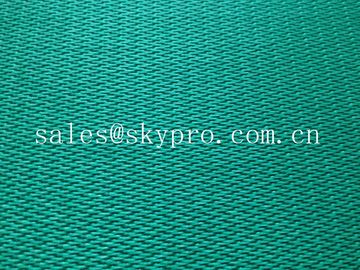

Mesh texture conveyor belt

Structure: 3 plies of textiles & 3 plies of polymers

Model: SP39-76/4

Thickness:7.0mm

Tensile force for 1% elongation:50N/mm

Minimum pulley diameter:350mm

Maximum production width: 2000mm

Structure: 4 plies of textiles & 4 plies of polymers

Model: SP49-76/25

Thickness:8.9mm

Tensile force for 1% elongation:70N/mm

Minimum pulley diameter:450mm

Maximum production width: 2000mm

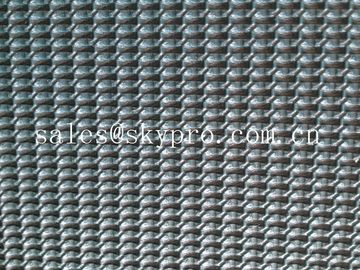

Convex tooth texture conveyor belt

Structure: 3plies of textiles & 3 plies of polymers

Model: SP39-76/23

Thickness:11.0mm

Tensile force for 1% elongation:50N/mm

Minimum pulley diameter:350mm

Maximum production width: 2200mm

Structure: 4plies of textiles & 4 plies of polymers

Model: SP49-76/23

Thickness:12.5mm

Tensile force for 1% elongation:70N/mm

Minimum pulley diameter:450mm

Maximum production width: 2200mm

Structure: 4plies of textiles & 4 plies of polymers

Model: SP49-86/23

Thickness:12.5mm

Tensile force for 1% elongation:70N/mm

Minimum pulley diameter:450mm

Maximum production width: 2200mm
