Nanjing Skypro Rubber & Plastic Co.,ltd
full satisfaction need full efforts.
 |
| Place of Origin: | China |
| Brand Name: | Skypro |
| Certification: | ROHS/SGS/REACH |
| Model Number: | SY007 |
| Minimum Order Quantity: | 200 Piece/Pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union, L/C |
| Supply Ability: | 1000ton per month |
| Product Name: | Silicone Rubber Sheet | Color: | White |
|---|---|---|---|
| Material: | Silicone And Rubber | Feature: | /Heat-resistance/Freon-proof/Waterproof |
| Application: | Insulation/cushion/gasket | ||
| High Light: | rubber sheeting roll,rubber mat roll |
||

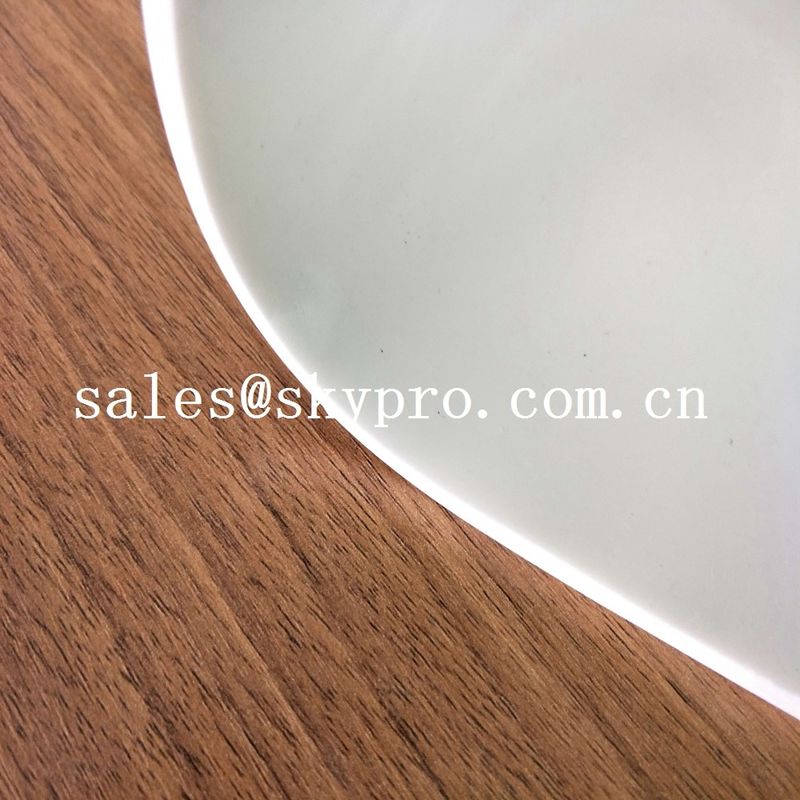

Transparent Silicone Rubber Sheet Heat-resistant Silicone Sheet
1. introduction
Material: 100% Virgin Silicone Rubber
Surface: Smooth/Smooth, Smooth/Fabric Impression
Tensile Strength: 7-12Mpa
Temperature : -60° C~+260° C
Hardness: 15, 20, 30, 40, 50, 60, 70, 80+/-5Shore A
Elongation: 330%-760%
Density: 1.25-1.30g/cm3
Tear Strength: 26-42N/mm
Thickness: 0.1-30mm
Width: 0.5-3.8m
Length: 5- 20m
Grade: Industrial Grade, Food Grade
Standard size: 1-8mm x 1m x 10m, 1-8mm x 1.2m x 10m, 10-30mm x 1m x 1m, 10-30mm x 1.2m x 1.2m etc.
2. silicon rubber sheet for heat press Rubber Type including:
Natural rubber / SBR, Neoprene, NBR, EPDM, Butyl, Sillicon, Viton.
Colour any colour per your specific requirement. (black, green, red, white, grey, or others).
Insertion rubber sheeting with one or two / multiple plies are also available special purpose rubber sheet available on customize basis.
3. Characteristic silicon rubber sheet for heat press :
Natural Rubber Sheet: High flexibility, good comprehensive physical mechanic performance.
SBR Rubber Sheet: Better wear-resistant and anti-aging function than NR, low prices.
Neoprene Rubber Sheet: Good climate resistant, ozone proof, hot resistance and chemical resistant.
NBR Rubber Sheet: Good oil-resistant, wear-resistant and anti-aging.
EPDM Rubber Sheet: Good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest
rubber.
Butyl Rubber Sheet: Low permeability, good anti-aging.
Sillicon Rubber Sheet: Excellent oil and fats resistance and for high temperatureup to 260. High resistant one can reach to 250-270 C.
Viton Rubber Sheet: For high temperature up to 300 C.
Packing by plastice film or weaver bags( P. P bags), See below photo:
| Polymers | NR | SBR | NBR | Neoprene | EPDM | Butyl | Silicon | Viton | |
| Hardness Range (Shore A) | 40-85 | 45-85 | 40-85 | 50-80 | 40-85 | 50-80 | 40-75 | 70-80 | |
| Tense Strength (mpa) | 3-20 | 2-10 | 3-20 | 3-10 | 3-15 | 3-8 | 6-10 | 6-8 | |
| (PSI) (aprox.) | 435-2900 | 290-1450 | 435-2900 | 435-1450 | 435-2175 | 435-1160 | 870-1450 | 870-1160 | |
| Elongation (%) | 200-650 | 200-450 | 200-500 | 200-500 | 200-500 | 200-500 | 200-700 | 100 | |
| Specific Gravity(g/cc) | 1.1-1.6 | 1.4-1.7 | 1.1-1.6 | 1.3-1.7 | 1.4-1.6 | 1.35 | 1.2-1.4 | 1.9 | |
| Temperature range | -75~90 | -60~100 | -50~120 | -50~120 | -60~150 | -60~150 | -120~260 | -50~300 | |
Packing and transportation:
| Packing way | Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients |
| Packing material | Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary |
| Shipping marks | Neutral packing with printed marks. |
| Delivery time | 15 days since receipt of PO and down payment |
| Freight | Sea(FCL & LCL) or air freight |
| Special size | We provide cutting services for special sizes |
| Lamination | We provides extra lamination with PSA, textiles or other materials. |
FAQ(Frequently Asked Questions)
1. What is the capability of your company ?
Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.
2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.
3.How can I get some samples?
We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.
| rubber variety (ASTM ) |
EPDM | IIR | CSM | SIR | FKM | |
| chemical structure | Ethylene Propylene Terpolymer Rubber | Isobutene-Isoprene (butyl) Rubber | Chlorosulfonated Polyethyelene | Silicone Rubber | Vinylidene Fluoride Hexaflyoropropylene Rubber,Viton | |
| main characteristics | good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber | good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant | better wear-resistant and anti-aging function than NR, lower prices. | good cold & hot resistant | best hot resistant and chemical resistant | |
| quality of NR | proportion | 0.85 | 0.91~0.93 | 1.10 | 0.98 | 1.4~1.96 |
| meni adhesive ML1+4 100 ℃ | 40~100 | 45~80 | 45~60 | liquid state | 35~160 | |
| rubber physical performance | hardness range ( SHORE A ) | 30~100 | 20~90 | 50~95 | 20~95 | 60~90 |
| anti-tensity (MPa) | 7~20 | 7~20 | 7~20 | 3~10 | 7~16 | |
| elongation rate (%) | 100~300 | 100~700 | 100~500 | 50~800 | 100~350 | |
| re-elasticity | good | middle | good | good | middle | |
| tearing force | bad | excellent | good | middle | middle | |
| wear-resistant | good | good | good | middle | good | |
| compress & distortion | middle | middle | good | excellent | excellent | |
| temperature range(℃) | -60~150 | -60~150 | -60~150 | -120~280 | -50~300 | |
| climate resistant | excellent | excellent | excellent | excellent | excellent | |
| ozone proof | excellent | excellent | excellent + | excellent | excellent + | |
| electric performance | excellent | excellent | good | excellent | good ~ excellent | |
| gas penetrating resistant | middle | excellent | less good | bad | excellent | |
| oil-resistant and acid& alkali resistant | oil-resistant | bad | middle | good | middle | excellent |
| fire-resistant | bad | bad | middle | bad | excellent | |
| alcohol | excellent | excellent | excellent | excellent | excellent | |
| MEK | good | excellent | less good | excellent | middle | |
| water | excellent | excellent | good ~ excellent | excellent | good ~ ecellent | |
| high concentration inorganic acid | good | excellent | excellent | good | excellent | |
| low concentration inorganic acid | excellent | excellent | excellent | excellent | excellent | |
| high concentration alkali | excellent | excellent | excellent | excellent | excellent | |
| low concentration alkali | excellent | excellent | excellent | excellent | excellent | |
| application | wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line | interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line | climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller | axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products | axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory | |
